HEAVY DUTY CONNECTOR, 10+PE SIGNAL, UL508, HAN ES SERIES, INSERT, 11 CONTACTS, 10B, RECEPTACLE

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, 10+PE SIGNAL, UL508, HAN ES SERIES, INSERT, 11 CONTACTS, 10B, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	09330102716

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	10+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Termination Style	Push In
Voltage Rating	600 V

Part	Material Flammability Rating	Gender	Size	Current Rating (Amps)	Number of Positions	Color	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Housing Material	Voltage Rating	Contact Material	Connector Type	Contact Type	Number of Positions
HARTING Technology Group 09330102748	UL94 V-0	Female	10B	16 A	10+Ground	Gray	Tension Clamp	125 °C	-40 °C	Silver	Polycarbonate (PC)	500 V	Copper Alloy
HARTING Technology Group 09330102716	UL94 V-0	Female	10B	16 A	10+Ground	Gray	Push In	125 °C	-40 °C	Silver	Polycarbonate (PC)	600 V	Copper Alloy
HARTING Technology Group 09330102791	UL94 V-0	Female	10B	16 A	10+Ground	Gray	Screw	125 °C	-40 °C	Gold	Polycarbonate (PC)	400 V	Iron-Constantan (FE/KO)
HARTING Technology Group 09330102602	UL94 V-0	Male	10B	16 A	10+Ground	Gray	Crimp	125 °C	-40 °C		Polycarbonate (PC)	600 V		Insert without Contacts	Han®
HARTING Technology Group 09330102652		Male					Crimp							Insert without Contacts		10
HARTING Technology Group 09330102702	UL94 V-0	Female	10B	16 A	10+Ground	Gray	Crimp	125 °C	-40 °C		Polycarbonate (PC)	600 V		Insert without Contacts	Han®
HARTING Technology Group 09330102672	UL94 V-0	Male	10B	16 A	10+Ground	Gray	Push In	125 °C	-40 °C	Silver	Polycarbonate (PC)	500 V	Copper Alloy
HARTING Technology Group 09330102648	UL94 V-0	Male	10B	16 A	10+Ground	Gray	Tension Clamp	125 °C	-40 °C	Silver	Polycarbonate (PC)	500 V	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

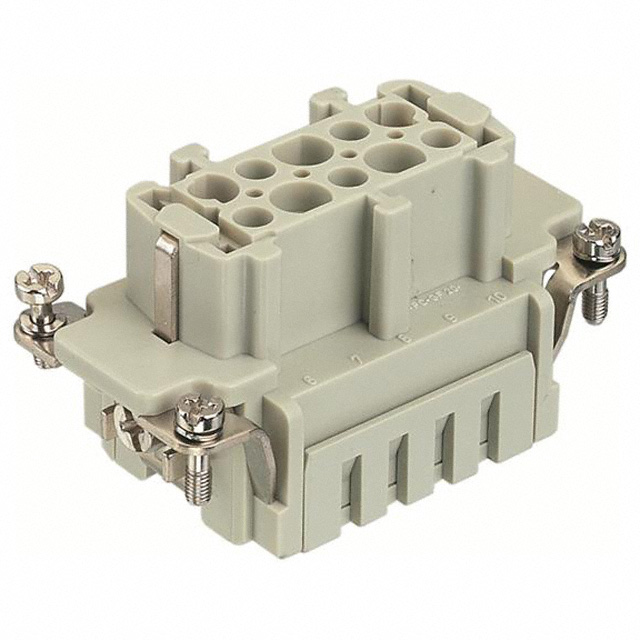

Female Insert Gray 10+Ground Position Push In
