09330102791

Active

HARTING Technology Group

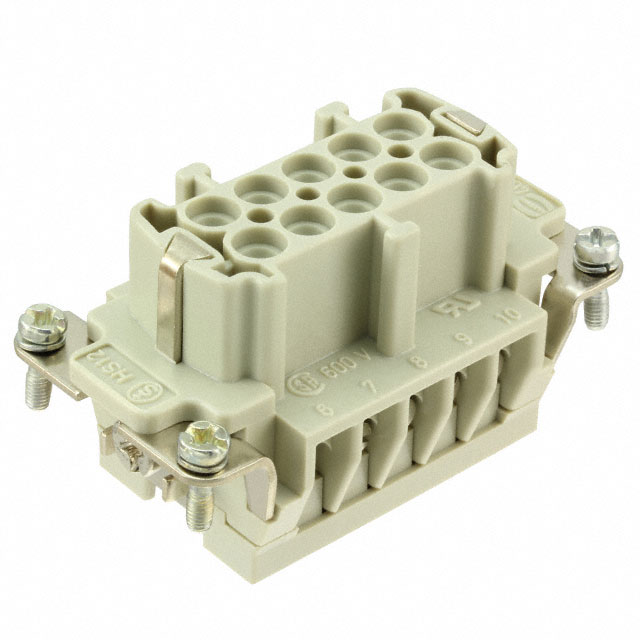

HEAVY DUTY CONNECTOR, HAN-E SERIES, INSERT, 10+PE CONTACTS, 10B, RECEPTACLE, SCREW SOCKET

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-E SERIES, INSERT, 10+PE CONTACTS, 10B, RECEPTACLE, SCREW SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	09330102791

Color	Gray
Contact Finish	Gold
Contact Material	Iron-Constantan (FE/KO)
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	10+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Termination Style	Screw
Voltage Rating	400 V

Part	Material Flammability Rating	Gender	Size	Current Rating (Amps)	Number of Positions	Color	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Housing Material	Voltage Rating	Contact Material	Connector Type	Contact Type	Number of Positions
HARTING Technology Group 09330102748	UL94 V-0	Female	10B	16 A	10+Ground	Gray	Tension Clamp	125 °C	-40 °C	Silver	Polycarbonate (PC)	500 V	Copper Alloy
HARTING Technology Group 09330102716	UL94 V-0	Female	10B	16 A	10+Ground	Gray	Push In	125 °C	-40 °C	Silver	Polycarbonate (PC)	600 V	Copper Alloy
HARTING Technology Group 09330102791	UL94 V-0	Female	10B	16 A	10+Ground	Gray	Screw	125 °C	-40 °C	Gold	Polycarbonate (PC)	400 V	Iron-Constantan (FE/KO)
HARTING Technology Group 09330102602	UL94 V-0	Male	10B	16 A	10+Ground	Gray	Crimp	125 °C	-40 °C		Polycarbonate (PC)	600 V		Insert without Contacts	Han®
HARTING Technology Group 09330102652		Male					Crimp							Insert without Contacts		10
HARTING Technology Group 09330102702	UL94 V-0	Female	10B	16 A	10+Ground	Gray	Crimp	125 °C	-40 °C		Polycarbonate (PC)	600 V		Insert without Contacts	Han®
HARTING Technology Group 09330102672	UL94 V-0	Male	10B	16 A	10+Ground	Gray	Push In	125 °C	-40 °C	Silver	Polycarbonate (PC)	500 V	Copper Alloy
HARTING Technology Group 09330102648	UL94 V-0	Male	10B	16 A	10+Ground	Gray	Tension Clamp	125 °C	-40 °C	Silver	Polycarbonate (PC)	500 V	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert Gray 10+Ground Position Screw
