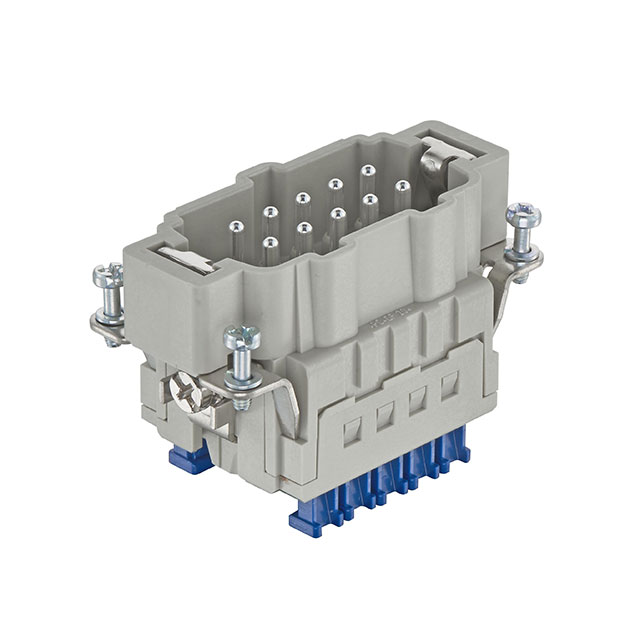

09330102648 - 09330102648_Side-B

09330102648

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN 6ES PRESS SERIES, INSERT, 10 CONTACTS, 10B, PLUG, CAGE CLAMP PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOperating Instructions ENManufacturer Catalogue EN+3
09330102648 - 09330102648_Side-B

09330102648

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN 6ES PRESS SERIES, INSERT, 10 CONTACTS, 10B, PLUG, CAGE CLAMP PIN

Deep-Dive with AI

DocumentsOperating Instructions ENManufacturer Catalogue EN+3

Technical Specifications

Parameters and characteristics for this part

Specification09330102648
ColorGray
Contact FinishSilver
Contact MaterialCopper Alloy
Current Rating (Amps)16 A
GenderMale
Housing MaterialPolycarbonate (PC)
Material Flammability RatingUL94 V-0
Number of Positions10+Ground
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size10B
Termination StyleTension Clamp
Voltage Rating500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 22.35
10$ 19.57
25$ 18.72
50$ 18.12
100$ 17.52
250$ 16.55
500$ 16.07
NewarkEach 1$ 24.42
5$ 22.91
10$ 21.40
25$ 20.47
50$ 19.81
100$ 19.15

Description

General part information

09330102 Series

Male Insert Gray 10+Ground Position Tension Clamp
