09330102602

Active

HARTING Technology Group

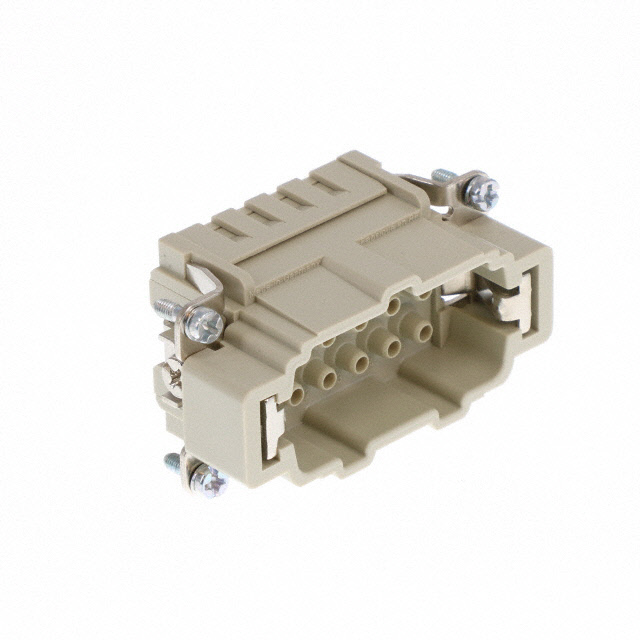

HEAVY DUTY CONNECTOR, 10+PE, UL508, HAN E SERIES, INSERT, 11 CONTACTS, 10B, PLUG

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, 10+PE, UL508, HAN E SERIES, INSERT, 11 CONTACTS, 10B, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	09330102602

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	10+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Termination Style	Crimp
Voltage Rating	600 V

Part	Material Flammability Rating	Gender	Size	Current Rating (Amps)	Number of Positions	Color	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Housing Material	Voltage Rating	Contact Material	Connector Type	Contact Type	Number of Positions
HARTING Technology Group 09330102748	UL94 V-0	Female	10B	16 A	10+Ground	Gray	Tension Clamp	125 °C	-40 °C	Silver	Polycarbonate (PC)	500 V	Copper Alloy
HARTING Technology Group 09330102716	UL94 V-0	Female	10B	16 A	10+Ground	Gray	Push In	125 °C	-40 °C	Silver	Polycarbonate (PC)	600 V	Copper Alloy
HARTING Technology Group 09330102791	UL94 V-0	Female	10B	16 A	10+Ground	Gray	Screw	125 °C	-40 °C	Gold	Polycarbonate (PC)	400 V	Iron-Constantan (FE/KO)
HARTING Technology Group 09330102602	UL94 V-0	Male	10B	16 A	10+Ground	Gray	Crimp	125 °C	-40 °C		Polycarbonate (PC)	600 V		Insert without Contacts	Han®
HARTING Technology Group 09330102652		Male					Crimp							Insert without Contacts		10
HARTING Technology Group 09330102702	UL94 V-0	Female	10B	16 A	10+Ground	Gray	Crimp	125 °C	-40 °C		Polycarbonate (PC)	600 V		Insert without Contacts	Han®
HARTING Technology Group 09330102672	UL94 V-0	Male	10B	16 A	10+Ground	Gray	Push In	125 °C	-40 °C	Silver	Polycarbonate (PC)	500 V	Copper Alloy
HARTING Technology Group 09330102648	UL94 V-0	Male	10B	16 A	10+Ground	Gray	Tension Clamp	125 °C	-40 °C	Silver	Polycarbonate (PC)	500 V	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 10+Ground Position Crimp
