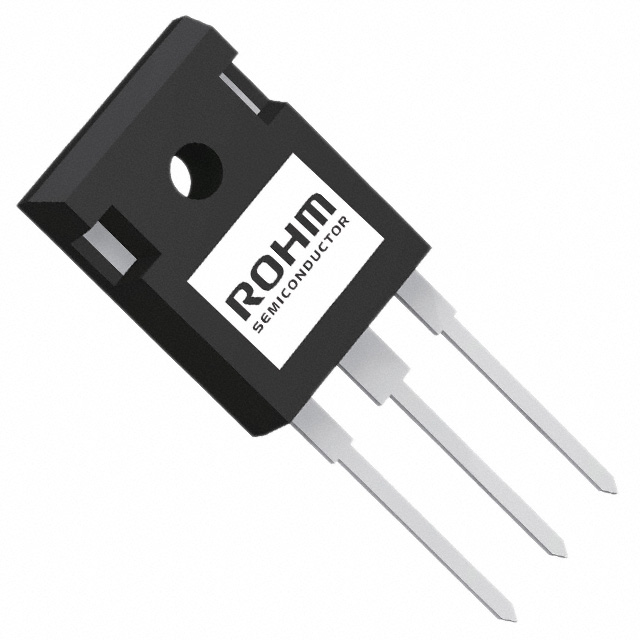

SCS240AE2HRC

Obsolete

Rohm Semiconductor

DIODE ARR SIC SCHOT 650V TO247

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

DIODE ARR SIC SCHOT 650V TO247

Technical Specifications

Parameters and characteristics for this part

Specification	SCS240AE2HRC

Current - Average Rectified (Io) (per Diode)	15 A
Current - Reverse Leakage @ Vr	300 µA
Diode Configuration	1 Pair Common Cathode
Grade	Automotive
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	TO-247-3
Qualification	AEC-Q101
Speed	No Recovery Time
Supplier Device Package	TO-247
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V
Voltage - Forward (Vf) (Max) @ If	1.55 V

1200V, 40A, 3-pin THD, Silicon-carbide (SiC) SBD

Part	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Technology	Diode Configuration	Supplier Device Package	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Current - Average Rectified (Io) (per Diode)	Package / Case	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction	Qualification	Grade
Rohm Semiconductor SCS240KE2HRC11	Through Hole	1.6 V	SiC (Silicon Carbide) Schottky	1 Pair Common Cathode	TO-247	0 ns	1.2 kV	No Recovery Time	20 A	TO-247-3	400 µA	175 °C
Rohm Semiconductor SCS240KE2GC11	Through Hole	1.6 V	SiC (Silicon Carbide) Schottky	1 Pair Common Cathode	TO-247N	0 ns	1.2 kV	No Recovery Time	20 A	TO-247-3	400 µA		175 °C
Rohm Semiconductor SCS240AE2GC11	Through Hole	1.55 V	SiC (Silicon Carbide) Schottky	1 Pair Common Cathode	TO-247N	0 ns	650 V	No Recovery Time	20 A	TO-247-3	400 µA		175 °C
Rohm Semiconductor SCS240AE2HRC	Through Hole	1.55 V	SiC (Silicon Carbide) Schottky	1 Pair Common Cathode	TO-247		650 V	No Recovery Time	15 A	TO-247-3	300 µA	175 °C		AEC-Q101	Automotive
Rohm Semiconductor SCS240KE2C	Through Hole		SiC (Silicon Carbide) Schottky	1 Pair Common Cathode	TO-247	0 ns	1.2 kV	No Recovery Time	20 A	TO-247-3	400 µA	175 °C
