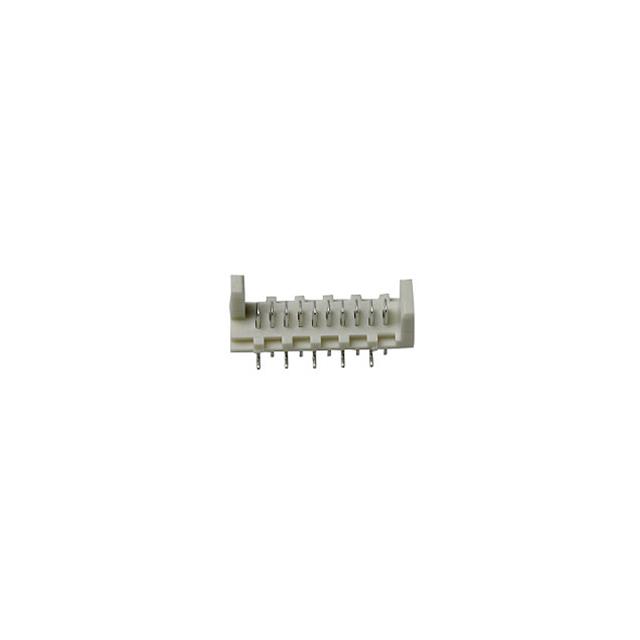

PICOFLEX PF-50 HEADER WITHOUT PCB PEGS, VERTICAL, LOW PROFILE, SURFACE MOUNT, SELECTIVE GOLD (AU) PLATING, 18 CIRCUITS, TAPE AND REEL, NATURAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsApplication Specification Drawing

908143718

Active

Molex

PICOFLEX PF-50 HEADER WITHOUT PCB PEGS, VERTICAL, LOW PROFILE, SURFACE MOUNT, SELECTIVE GOLD (AU) PLATING, 18 CIRCUITS, TAPE AND REEL, NATURAL

Deep-Dive with AI

DocumentsApplication Specification Drawing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	908143718

null

90814 Series

Part	Insulation Height	Insulation Height	Contact Finish - Mating	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Finish - Post	Number of Positions	Contact Material	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions Loaded	Termination	Insulation Material	Contact Type	Insulation Color	Mounting Type	Pitch - Mating	Pitch - Mating	Style	Shrouding	Fastening Type	Contact Shape	Number of Rows	Material Flammability Rating	Number of Positions	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Current Rating (Amps)	Voltage Rating
Molex 908143818
Molex 0908143816	0.161 in	4.1 mm	Palladium-Nickel	Automotive General Purpose Industrial Medical	24 µin	0.61 µm	Board Guide	Tin	16	Cartridge Brass	Header	3 µm	118.1 µin	0.085 "	2.15 mm	All	Solder	Glass Filled Nylon Polyamide (PA)	Male Blade	Natural	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	Shrouded - 2 Wall	Push-Pull	Rectangular	1	UL94 V-0
Molex 0908140120				Automotive General Purpose Industrial Medical		118.1 µin	Board Guide	Tin		Brass	Header			0.085 "	2.15 mm	All	Solder	Glass Filled Nylon Polyamide (PA)	Male Blade	Natural	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	Shrouded - 2 Wall	Push-Pull	Rectangular	1	UL94 V-0	20	6.4 mm	0.252 in	3 µm	1.2 A	250 VDC
Molex 0908143022			Gold	Automotive General Purpose Industrial Medical	30 Áin	0.76 Ám	Board Guide	Tin		Brass	Header	3 µm	118.1 µin	0.085 "	2.15 mm	All	Solder	Glass Filled Nylon Polyamide (PA)	Male Blade	Natural	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	Shrouded - 2 Wall	Push-Pull	Rectangular	1	UL94 V-0	22 positions	6.4 mm	0.252 in		1.2 A	250 VDC
Molex 0908143808	0.161 in	4.1 mm	Palladium-Nickel	Automotive General Purpose Industrial Medical	24 µin	0.61 µm	Board Guide	Tin		Cartridge Brass	Header	3 µm	118.1 µin	0.085 "	2.15 mm	All	Solder	Glass Filled Nylon Polyamide (PA)	Male Blade	Natural	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	Shrouded - 2 Wall	Push-Pull	Rectangular	1	UL94 V-0	8
Molex 908143718
Molex 0908140804	0.161 in	4.1 mm		Automotive General Purpose Industrial Medical		118.1 µin	Board Guide	Tin		Cartridge Brass	Header			0.085 "	2.15 mm	All	Solder	Glass Filled Nylon Polyamide (PA)	Male Blade	Natural	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	Shrouded - 2 Wall	Push-Pull	Rectangular	1	UL94 V-0	4			3 µm
Molex 908143716

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	600	$ 2.33

Description

General part information

90814 Series

Connector Header position

Documents

Technical documentation and resources

Application Specification

Application Specifications PDF

Drawing

Sales Drawing PDF
