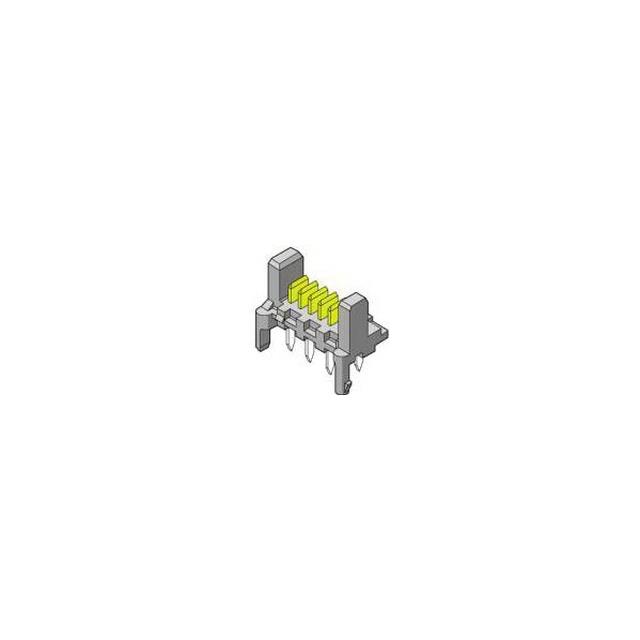

PICOFLEX PF-50 HEADER WITH PCB PEGS, VERTICAL, LOW PROFILE, SURFACE MOUNT, SELECTIVE GOLD (AU) PLATING, 18 CIRCUITS, TUBE, NATURAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing Packaging Specification +1

908143818

Active

Molex

PICOFLEX PF-50 HEADER WITH PCB PEGS, VERTICAL, LOW PROFILE, SURFACE MOUNT, SELECTIVE GOLD (AU) PLATING, 18 CIRCUITS, TUBE, NATURAL

Deep-Dive with AI

DocumentsDrawing Packaging Specification +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	908143818

null

90814 Series

Part	Insulation Height	Insulation Height	Contact Finish - Mating	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Finish - Post	Number of Positions	Contact Material	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions Loaded	Termination	Insulation Material	Contact Type	Insulation Color	Mounting Type	Pitch - Mating	Pitch - Mating	Style	Shrouding	Fastening Type	Contact Shape	Number of Rows	Material Flammability Rating	Number of Positions	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Current Rating (Amps)	Voltage Rating
Molex 908143818
Molex 0908143816	0.161 in	4.1 mm	Palladium-Nickel	Automotive General Purpose Industrial Medical	24 µin	0.61 µm	Board Guide	Tin	16	Cartridge Brass	Header	3 µm	118.1 µin	0.085 "	2.15 mm	All	Solder	Glass Filled Nylon Polyamide (PA)	Male Blade	Natural	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	Shrouded - 2 Wall	Push-Pull	Rectangular	1	UL94 V-0
Molex 0908140120				Automotive General Purpose Industrial Medical		118.1 µin	Board Guide	Tin		Brass	Header			0.085 "	2.15 mm	All	Solder	Glass Filled Nylon Polyamide (PA)	Male Blade	Natural	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	Shrouded - 2 Wall	Push-Pull	Rectangular	1	UL94 V-0	20	6.4 mm	0.252 in	3 µm	1.2 A	250 VDC
Molex 0908143022			Gold	Automotive General Purpose Industrial Medical	30 Áin	0.76 Ám	Board Guide	Tin		Brass	Header	3 µm	118.1 µin	0.085 "	2.15 mm	All	Solder	Glass Filled Nylon Polyamide (PA)	Male Blade	Natural	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	Shrouded - 2 Wall	Push-Pull	Rectangular	1	UL94 V-0	22 positions	6.4 mm	0.252 in		1.2 A	250 VDC
Molex 0908143808	0.161 in	4.1 mm	Palladium-Nickel	Automotive General Purpose Industrial Medical	24 µin	0.61 µm	Board Guide	Tin		Cartridge Brass	Header	3 µm	118.1 µin	0.085 "	2.15 mm	All	Solder	Glass Filled Nylon Polyamide (PA)	Male Blade	Natural	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	Shrouded - 2 Wall	Push-Pull	Rectangular	1	UL94 V-0	8
Molex 908143718
Molex 0908140804	0.161 in	4.1 mm		Automotive General Purpose Industrial Medical		118.1 µin	Board Guide	Tin		Cartridge Brass	Header			0.085 "	2.15 mm	All	Solder	Glass Filled Nylon Polyamide (PA)	Male Blade	Natural	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	Shrouded - 2 Wall	Push-Pull	Rectangular	1	UL94 V-0	4			3 µm
Molex 908143716
