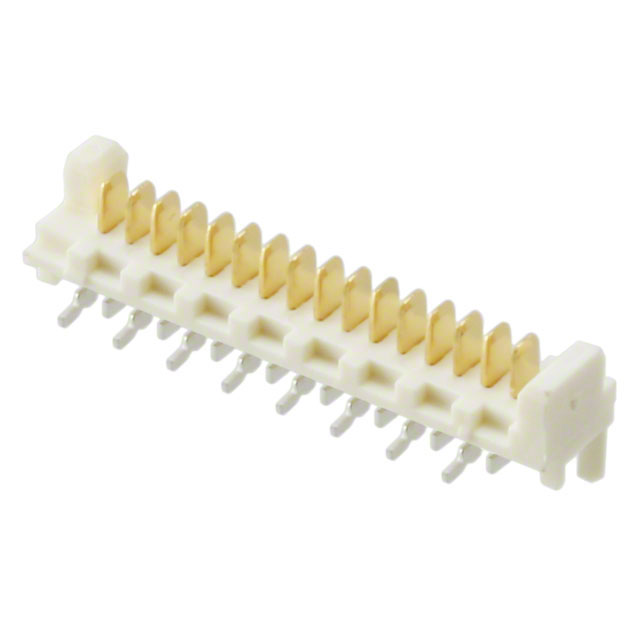

0908143816
ActiveMolex
CONN HEADER SMD 16POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
0908143816
ActiveMolex
CONN HEADER SMD 16POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0908143816 |
|---|---|
| Applications | Automotive, Industrial, General Purpose, Medical |
| Connector Type | Header |
| Contact Finish - Mating | Palladium-Nickel |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 24 µin |
| Contact Finish Thickness - Mating | 0.61 µm |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Length - Mating | 2.15 mm |
| Contact Length - Mating [x] | 0.085 " |
| Contact Material | Cartridge Brass |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Natural |
| Insulation Height | 0.161 in |
| Insulation Height | 4.1 mm |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Shrouding | Shrouded - 2 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.74 | |
| 10 | $ 2.88 | |||
| 100 | $ 2.56 | |||
Description
General part information
90814 Series
Connector Header Surface Mount 16 position 0.050" (1.27mm)
