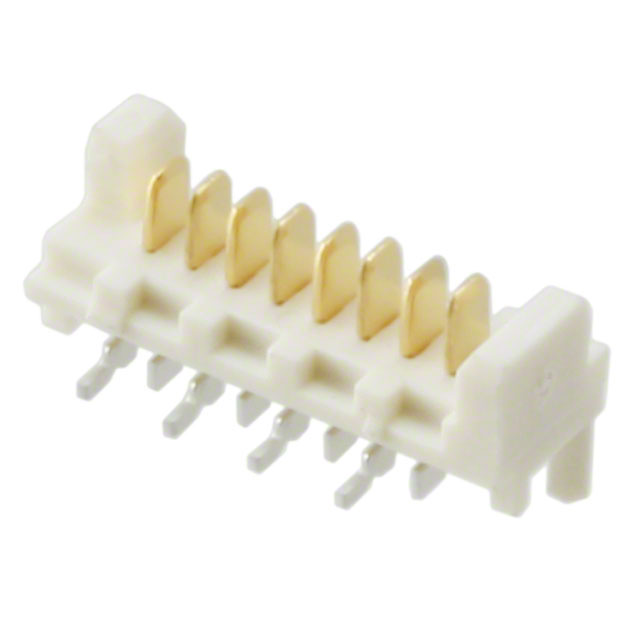

0908143808

Active

Molex

CONN HEADER SMD 8POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents90814-001 Pkg Spec 90814, 93405-x0,3 Pkg Spec +2

0908143808

Active

Molex

CONN HEADER SMD 8POS 1.27MM

Deep-Dive with AI

Documents90814-001 Pkg Spec 90814, 93405-x0,3 Pkg Spec +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0908143808

Applications	Automotive, Industrial, General Purpose, Medical
Connector Type	Header
Contact Finish - Mating	Palladium-Nickel
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	24 µin
Contact Finish Thickness - Mating	0.61 µm
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Mating	2.15 mm
Contact Length - Mating [x]	0.085 "
Contact Material	Cartridge Brass
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.161 in
Insulation Height	4.1 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Shrouded - 2 Wall
Style	Board to Cable/Wire
Termination	Solder

90814 Series

Part	Insulation Height	Insulation Height	Contact Finish - Mating	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Finish - Post	Number of Positions	Contact Material	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions Loaded	Termination	Insulation Material	Contact Type	Insulation Color	Mounting Type	Pitch - Mating	Pitch - Mating	Style	Shrouding	Fastening Type	Contact Shape	Number of Rows	Material Flammability Rating	Number of Positions	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Current Rating (Amps)	Voltage Rating
Molex 908143818
Molex 0908143816	0.161 in	4.1 mm	Palladium-Nickel	Automotive General Purpose Industrial Medical	24 µin	0.61 µm	Board Guide	Tin	16	Cartridge Brass	Header	3 µm	118.1 µin	0.085 "	2.15 mm	All	Solder	Glass Filled Nylon Polyamide (PA)	Male Blade	Natural	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	Shrouded - 2 Wall	Push-Pull	Rectangular	1	UL94 V-0
Molex 0908140120				Automotive General Purpose Industrial Medical		118.1 µin	Board Guide	Tin		Brass	Header			0.085 "	2.15 mm	All	Solder	Glass Filled Nylon Polyamide (PA)	Male Blade	Natural	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	Shrouded - 2 Wall	Push-Pull	Rectangular	1	UL94 V-0	20	6.4 mm	0.252 in	3 µm	1.2 A	250 VDC
Molex 0908143022			Gold	Automotive General Purpose Industrial Medical	30 Áin	0.76 Ám	Board Guide	Tin		Brass	Header	3 µm	118.1 µin	0.085 "	2.15 mm	All	Solder	Glass Filled Nylon Polyamide (PA)	Male Blade	Natural	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	Shrouded - 2 Wall	Push-Pull	Rectangular	1	UL94 V-0	22 positions	6.4 mm	0.252 in		1.2 A	250 VDC
Molex 0908143808	0.161 in	4.1 mm	Palladium-Nickel	Automotive General Purpose Industrial Medical	24 µin	0.61 µm	Board Guide	Tin		Cartridge Brass	Header	3 µm	118.1 µin	0.085 "	2.15 mm	All	Solder	Glass Filled Nylon Polyamide (PA)	Male Blade	Natural	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	Shrouded - 2 Wall	Push-Pull	Rectangular	1	UL94 V-0	8
Molex 908143718
Molex 0908140804	0.161 in	4.1 mm		Automotive General Purpose Industrial Medical		118.1 µin	Board Guide	Tin		Cartridge Brass	Header			0.085 "	2.15 mm	All	Solder	Glass Filled Nylon Polyamide (PA)	Male Blade	Natural	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	Shrouded - 2 Wall	Push-Pull	Rectangular	1	UL94 V-0	4			3 µm
Molex 908143716

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.59
		10	$ 1.35
		100	$ 1.12
		1000	$ 1.04

Description

General part information

90814 Series

Connector Header Surface Mount 8 position 0.050" (1.27mm)

Documents

Technical documentation and resources

90814-001 Pkg Spec

90814, 93405-x0,3 Pkg Spec

Picoflex Brochure

Datasheet
