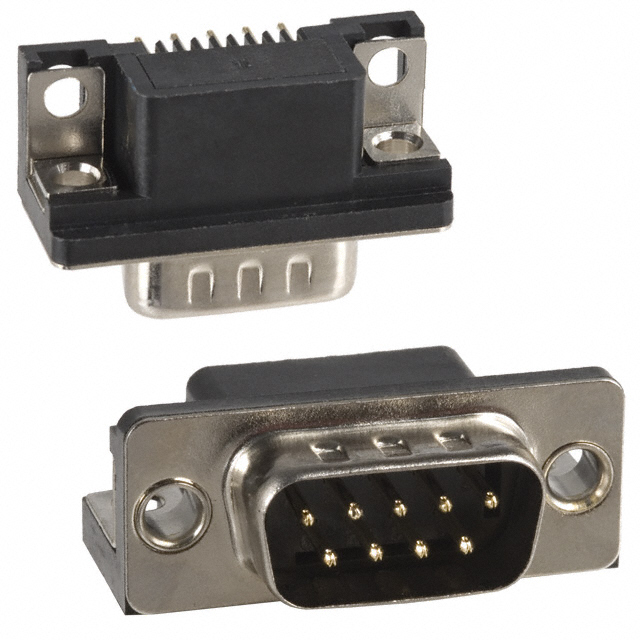

182-009-113R161 - 182-009-112-161, 182-009-113R161

182-009-113R161

Active
MH Connectors

D SUB CONNECTOR, DB9, 9 CONTACTS, PLUG, THROUGH HOLE, DE, 182 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetBackshell Reference Guide+3
182-009-113R161 - 182-009-112-161, 182-009-113R161

182-009-113R161

Active
MH Connectors

D SUB CONNECTOR, DB9, 9 CONTACTS, PLUG, THROUGH HOLE, DE, 182 SERIES, STEEL BODY

Deep-Dive with AI

DocumentsDatasheetBackshell Reference Guide+3

Technical Specifications

Parameters and characteristics for this part

Specification182-009-113R161
Backset Spacing8.08 mm
Backset Spacing0.318 "
ColorBlack
Connector StyleD-Sub
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA9T), Nylon 9T
FeaturesGrounding Indents, Ground Strap
Flange FeatureHousing/Shell (Unthreaded)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle, Panel Mount
Number of Positions9
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 2.24
10$ 1.95
25$ 1.86
40$ 1.82
90$ 1.74
270$ 1.57
450$ 1.45
990$ 1.24
2430$ 1.16
NewarkEach 500$ 1.47
1000$ 1.26
5000$ 1.12
10000$ 1.09

Description

General part information

182-009 Series

9 Position D-Sub Plug, Male Pins Connector
