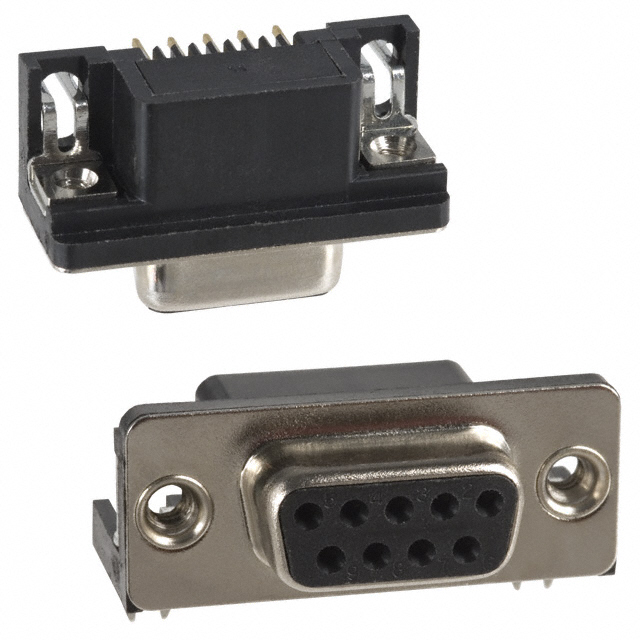

182-009-213R531 - 182-009-212-531, 182-009-213R531

182-009-213R531

Active
MH Connectors

D SUB CONNECTOR, STANDARD, RECEPTACLE, 182 SERIES, 9 CONTACTS, DE, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetBackshell Reference Guide+2
182-009-213R531 - 182-009-212-531, 182-009-213R531

182-009-213R531

Active
MH Connectors

D SUB CONNECTOR, STANDARD, RECEPTACLE, 182 SERIES, 9 CONTACTS, DE, SOLDER

Deep-Dive with AI

DocumentsDatasheetBackshell Reference Guide+2

Technical Specifications

Parameters and characteristics for this part

Specification182-009-213R531
Backset Spacing8.08 mm
Backset Spacing0.318 "
ColorBlack
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA9T), Nylon 9T
Flange FeatureHousing/Shell (4-40)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle, Panel Mount
Number of Positions9
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 2.83
10$ 2.16
25$ 1.94
40$ 1.84
80$ 1.71
230$ 1.52
440$ 1.42
945$ 1.31
2400$ 1.20
NewarkEach 1$ 2.01
10$ 1.63
25$ 1.51
50$ 1.45
100$ 1.34
250$ 1.26
500$ 1.16
1000$ 1.08

Description

General part information

182-009 Series

9 Position D-Sub Receptacle, Female Sockets Connector
