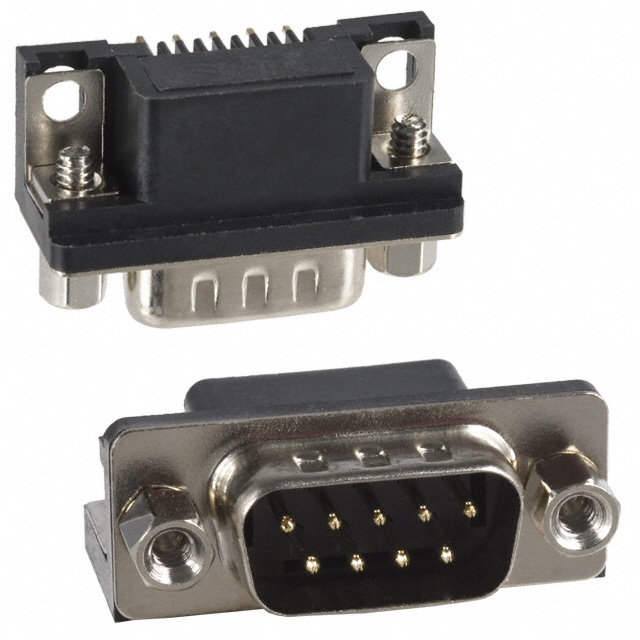

182-009-113R181 - 182-009-112-181, 182-009-113R181

182-009-113R181

Active
MH Connectors

D SUB CONNECTOR, DB9, 9 CONTACTS, PLUG, SOLDER, DE, 182 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference GuideDatasheet+3
182-009-113R181 - 182-009-112-181, 182-009-113R181

182-009-113R181

Active
MH Connectors

D SUB CONNECTOR, DB9, 9 CONTACTS, PLUG, SOLDER, DE, 182 SERIES, STEEL BODY

Deep-Dive with AI

DocumentsBackshell Reference GuideDatasheet+3

Technical Specifications

Parameters and characteristics for this part

Specification182-009-113R181
Backset Spacing8.08 mm
Backset Spacing0.318 "
ColorBlack
Connector StyleD-Sub
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA9T), Nylon 9T
FeaturesGrounding Indents, Ground Strap
Flange FeatureFemale Screwlock (4-40), Mating Side
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle, Panel Mount
Number of Positions9
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 2.60
10$ 2.36
25$ 2.24
40$ 2.18
90$ 2.08
270$ 1.82
450$ 1.77
990$ 1.51
2430$ 1.40
NewarkEach 500$ 1.85
1000$ 1.58
5000$ 1.40
10000$ 1.37

Description

General part information

182-009 Series

9 Position D-Sub Plug, Male Pins Connector
