240-1280-00-0602J

Active

3M (TC)

IC & COMPONENT SOCKET, 40 CONTACTS, DIP SOCKET, 2.54 MM, 240 SERIES, 15.24 MM, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

240-1280-00-0602J

Active

3M (TC)

IC & COMPONENT SOCKET, 40 CONTACTS, DIP SOCKET, 2.54 MM, 240 SERIES, 15.24 MM, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	240-1280-00-0602J

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	30 µin
Contact Finish Thickness - Post	0.76 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Beryllium Copper
Contact Resistance	15 mOhm
Current Rating (Amps)	1 A
Features	Closed Frame
Housing Material	Polysulfone (PSU), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Connector
Number of Positions or Pins (Grid)	40
Number of Positions or Pins (Grid) [custom]	20
Number of Positions or Pins (Grid) [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Press-Fit
Termination Post Length	0.11 in
Termination Post Length	2.78 mm
Type	15.24 mm
Type	DIP, ZIF (ZIP)
Type	0.6 "

240 Series

Part	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Features	Contact Finish - Post	Contact Material - Post	Pitch - Post	Pitch - Post	Housing Material	Type	Type	Type	Contact Resistance	Material Flammability Rating	Contact Material - Mating	Termination	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Current Rating (Amps)	Termination Post Length	Termination Post Length	Operating Temperature [Min]	Operating Temperature [Max]	Number of Pins	Termination Post Length [x]	Termination Post Length [x]	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Number of Positions or Pins (Grid) [custom]	Convert To (Adapter End)	Convert From (Adapter End)
3M (TC) 240-1280-00-0602J	Connector	30 Áin	0.76 Ám	0.1 in	2.54 mm	30 µin	0.76 µm	Gold	Closed Frame	Gold	Beryllium Copper	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled	15.24 mm	DIP ZIF (ZIP)	0.6 "	15 mOhm	UL94 V-0	Beryllium Copper	Press-Fit	40	20	2	1 A	0.11 in	2.78 mm	-55 °C	125 °C
3M (TC) 240-1280-19-0602J	Through Hole	30 Áin	0.76 Ám	0.1 in	2.54 mm	30 µin	0.76 µm	Gold	Closed Frame	Gold	Beryllium Copper	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled					UL94 V-0	Beryllium Copper	Wire Wrap				1 A			-55 °C	125 °C	40	0.62 in	15.75 mm	0.6 in	DIP	15.24 mm	15.24 mm	DIP	0.6 in
3M (TC) 240-5205-01	Through Hole							Gold	Closed Frame	Gold	Beryllium Copper			Polyethersulfone (PES)		QFN		25 mOhm		Beryllium Copper	Solder		10	4		0.118 in	3 mm												40
3M (TC) 240-1280-29-0602J	Through Hole	30 Áin	0.76 Ám	0.1 in	2.54 mm	30 µin	0.76 µm	Gold	Closed Frame	Gold	Beryllium Copper	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled					UL94 V-0	Beryllium Copper	Solder				1 A	0.13 in	3.3 mm	-55 °C	125 °C	40			0.6 in	DIP	15.24 mm	15.24 mm	DIP	0.6 in
3M (TC) 240-3639-19-0602J	Through Hole	30 Áin	0.76 Ám	0.1 in	2.54 mm	30 µin	0.76 µm	Gold	Closed Frame	Gold	Beryllium Copper	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled					UL94 V-0	Beryllium Copper	Wire Wrap				1 A			-55 °C	125 °C	40	0.62 in	15.75 mm		DIP	1 "		DIP	25.4 mm		25.4 mm	1 in
3M (TC) 240-1280-09-0602J	Through Hole	30 Áin	0.76 Ám	0.1 in	2.54 mm	30 µin	0.76 µm	Gold		Gold	Beryllium Copper	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled					UL94 V-0	Beryllium Copper	Solder				1 A	0.13 in	3.3 mm	-55 °C	125 °C	40			0.6 in	DIP	15.24 mm	15.24 mm	DIP	0.6 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 40.24
		10	$ 31.11
		25	$ 28.21
		50	$ 26.26
		100	$ 24.49
		250	$ 22.40
Newark	Each	25	$ 28.38
		50	$ 26.66
		100	$ 25.87
		250	$ 24.31
		500	$ 23.52

Description

General part information

240 Series

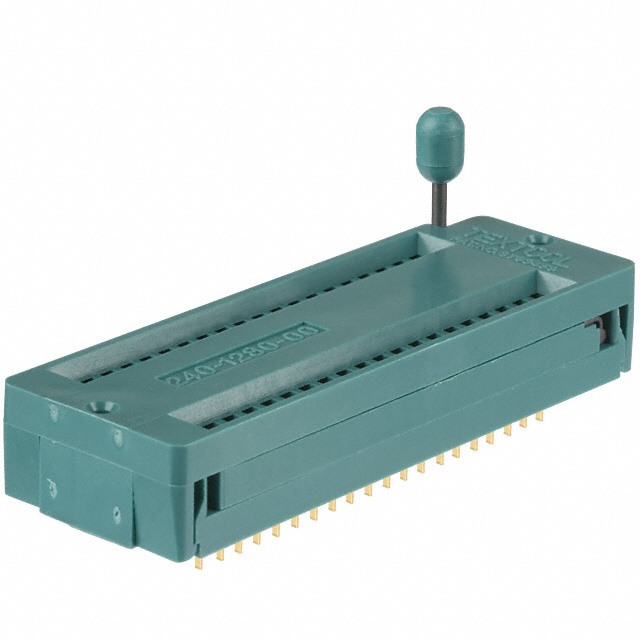

The 240-1280-00-0602J is a 40-way Textool™ DIP Socket with gold-plated beryllium copper contacts, 2.54mm lead spacing. This socket is glass filled polysulfone insulated, easily disassembles for repairability, lever actuated zero insertion force mechanism.
