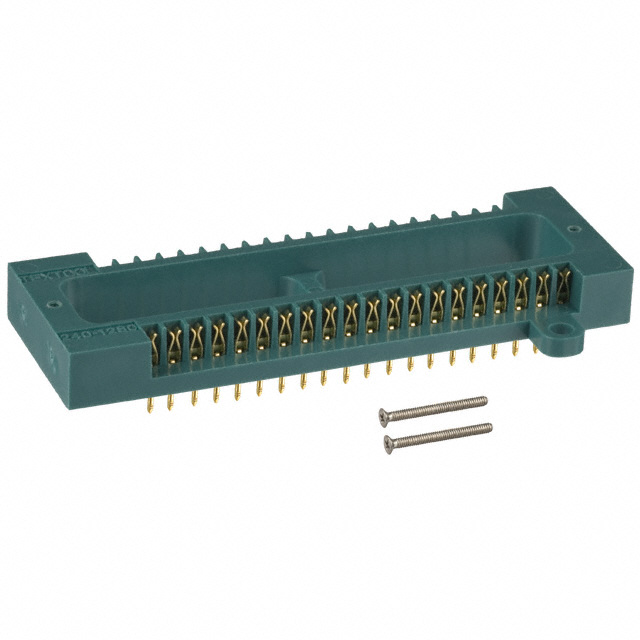

240-1280-09-0602J

Active

3M (TC)

SOCKET ADAPTER 40DIP TO 40DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

240-1280-09-0602J

Active

3M (TC)

SOCKET ADAPTER 40DIP TO 40DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	240-1280-09-0602J

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	30 µin
Contact Finish Thickness - Post	0.76 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Beryllium Copper
Convert From (Adapter End)	15.24 mm
Convert From (Adapter End)	DIP
Convert From (Adapter End)	0.6 in
Convert To (Adapter End)	0.6 in
Convert To (Adapter End)	DIP
Convert To (Adapter End)	15.24 mm
Current Rating (Amps)	1 A
Housing Material	Polysulfone (PSU), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Pins	40
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.3 mm
Termination Post Length	0.13 in

240 Series

Part	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Features	Contact Finish - Post	Contact Material - Post	Pitch - Post	Pitch - Post	Housing Material	Type	Type	Type	Contact Resistance	Material Flammability Rating	Contact Material - Mating	Termination	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Current Rating (Amps)	Termination Post Length	Termination Post Length	Operating Temperature [Min]	Operating Temperature [Max]	Number of Pins	Termination Post Length [x]	Termination Post Length [x]	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Number of Positions or Pins (Grid) [custom]	Convert To (Adapter End)	Convert From (Adapter End)
3M (TC) 240-1280-00-0602J	Connector	30 Áin	0.76 Ám	0.1 in	2.54 mm	30 µin	0.76 µm	Gold	Closed Frame	Gold	Beryllium Copper	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled	15.24 mm	DIP ZIF (ZIP)	0.6 "	15 mOhm	UL94 V-0	Beryllium Copper	Press-Fit	40	20	2	1 A	0.11 in	2.78 mm	-55 °C	125 °C
3M (TC) 240-1280-19-0602J	Through Hole	30 Áin	0.76 Ám	0.1 in	2.54 mm	30 µin	0.76 µm	Gold	Closed Frame	Gold	Beryllium Copper	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled					UL94 V-0	Beryllium Copper	Wire Wrap				1 A			-55 °C	125 °C	40	0.62 in	15.75 mm	0.6 in	DIP	15.24 mm	15.24 mm	DIP	0.6 in
3M (TC) 240-5205-01	Through Hole							Gold	Closed Frame	Gold	Beryllium Copper			Polyethersulfone (PES)		QFN		25 mOhm		Beryllium Copper	Solder		10	4		0.118 in	3 mm												40
3M (TC) 240-1280-29-0602J	Through Hole	30 Áin	0.76 Ám	0.1 in	2.54 mm	30 µin	0.76 µm	Gold	Closed Frame	Gold	Beryllium Copper	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled					UL94 V-0	Beryllium Copper	Solder				1 A	0.13 in	3.3 mm	-55 °C	125 °C	40			0.6 in	DIP	15.24 mm	15.24 mm	DIP	0.6 in
3M (TC) 240-3639-19-0602J	Through Hole	30 Áin	0.76 Ám	0.1 in	2.54 mm	30 µin	0.76 µm	Gold	Closed Frame	Gold	Beryllium Copper	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled					UL94 V-0	Beryllium Copper	Wire Wrap				1 A			-55 °C	125 °C	40	0.62 in	15.75 mm		DIP	1 "		DIP	25.4 mm		25.4 mm	1 in
3M (TC) 240-1280-09-0602J	Through Hole	30 Áin	0.76 Ám	0.1 in	2.54 mm	30 µin	0.76 µm	Gold		Gold	Beryllium Copper	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled					UL94 V-0	Beryllium Copper	Solder				1 A	0.13 in	3.3 mm	-55 °C	125 °C	40			0.6 in	DIP	15.24 mm	15.24 mm	DIP	0.6 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	30	$ 37.02

Description

General part information

240 Series

IC Socket Adapter DIP, 0.6" (15.24mm) Row Spacing To DIP, 0.6" (15.24mm) Row Spacing Through Hole
