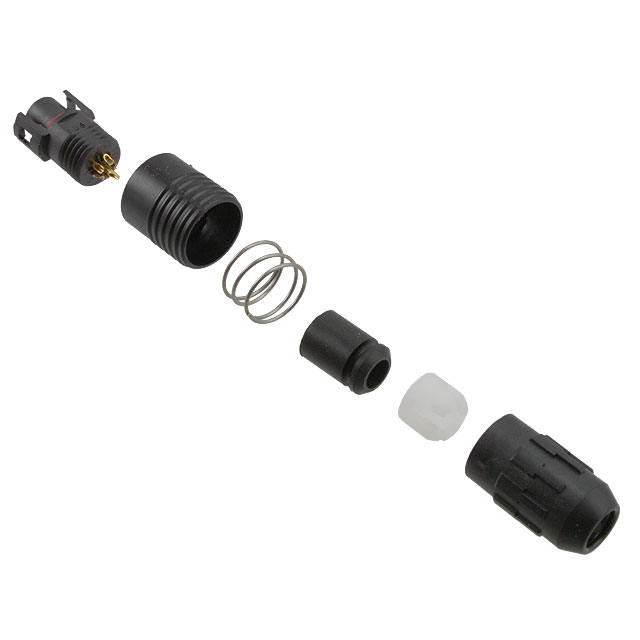

HR30-6PA-6P(71)

Active

Hirose Electric USA, Inc.

CIRCULAR CONNECTOR, 6 CONTACT(S), POLYPHENYLENE SULFIDE/POLYBUTYLENE TEREPHTHALATE/POLYACETAL, MALE, SOLDER TERMINAL, PLUG, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HR30-6PA-6P(71)

Active

Hirose Electric USA, Inc.

CIRCULAR CONNECTOR, 6 CONTACT(S), POLYPHENYLENE SULFIDE/POLYBUTYLENE TEREPHTHALATE/POLYACETAL, MALE, SOLDER TERMINAL, PLUG, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR30-6PA-6P(71)

Applications	Industrial, Marine, Medical
Backshell Material, Plating	Polybutylene Terephthalate (PBT)
Cable Opening [Max] [diameter]	4.3 mm
Cable Opening [Max] [diameter]	0.169 in
Cable Opening [Min] [diameter]	3.5 mm
Cable Opening [Min] [diameter]	0.138 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Brass
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	6
Voltage Rating	100 VAC, 140 VDC

HR30 Series
