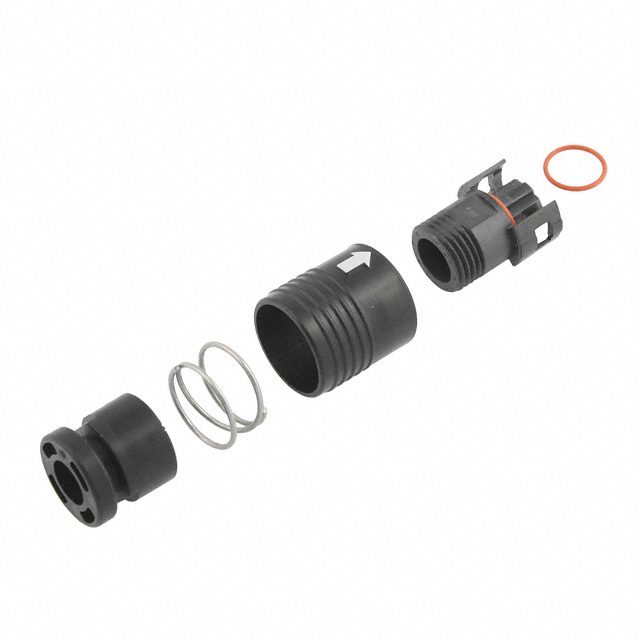

HR30-7PB-12SC

Active

Hirose Electric USA, Inc.

CONN PLG HSG FMALE 12POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HR30 Overmold Wiring Procedure +1

HR30-7PB-12SC

Active

Hirose Electric USA, Inc.

CONN PLG HSG FMALE 12POS INLINE

Deep-Dive with AI

DocumentsDatasheet HR30 Overmold Wiring Procedure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR30-7PB-12SC

Connector Type	Plug Housing
Contact Shape	Square
Contact Type	Crimp
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Housing Color	Black
Includes	1 Backshell, 1 Spring, 2 pc Connector
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Shell Material	Polyphenylene Sulfide (PPS)
Shell Size - Insert	7
Shielding	Unshielded
Type	For Female Sockets

HR30 Series

Part	Backshell Material, Plating	Mounting Type	Connector Type	Applications	Shell Material	Voltage Rating	Shell Size - Insert	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Contact Finish - Mating	Ingress Protection	Number of Positions	Orientation	Primary Material	Color	Material Flammability Rating	Features	Contact Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Includes	Mounting Feature	Note	Contact Shape	Shielding	Type	Contact Type	For Use With/Related Products	Accessory Type	Termination Finish	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Finish	Contact Termination
Hirose Electric USA, Inc. HR30-6PA-6P(71)	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Male Pins Plug	Industrial Marine Medical	Polybutylene Terephthalate (PBT)	100 VAC 140 VDC	6	Push-Pull	0.203 Ám	8 Áin	Polyphenylene Sulfide (PPS)	Gold	IP67/IP68 - Dust Tight Waterproof	6	Keyed	Plastic	Black	UL94 V-0	Backshell Strain Relief	Brass	3.5 mm	4.3 mm	0.169 in	0.138 in	2 A	-25 °C	85 °C
Hirose Electric USA, Inc. HR30-7J-12P(71)	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Jack Male Pins	Industrial Marine Medical	Polyphenylene Sulfide (PPS)	30 VAC 42 VDC	7	Push-Pull	0.203 Ám	8 Áin	Polyphenylene Sulfide (PPS)	Gold	IP67/IP68 - Dust Tight Waterproof	12	Keyed	Plastic	Black	UL94 V-0	Backshell Strain Relief	Copper Alloy	6.2 mm	7 mm	0.276 in	0.244 in	2 A	-25 °C	85 °C
Hirose Electric USA, Inc. HR30-7R-12PC			Receptacle Housing		Polyphenylene Sulfide (PPS)		7	Push-Pull			Polyphenylene Sulfide (PPS)		IP67/IP68 - Dust Tight Waterproof	12	Keyed			UL94 V-0								-25 °C	85 °C	Black	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Bulkhead - Rear Side Nut	Contacts Not Included	Square	Unshielded	For Male Pins	Crimp
Hirose Electric USA, Inc. HR30-7R-10PC			Receptacle Housing		Polyphenylene Sulfide (PPS)		7	Push-Pull			Polyphenylene Sulfide (PPS)		IP67/IP68 - Dust Tight Waterproof	10	Keyed			UL94 V-0								-25 °C	85 °C	Black	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Bulkhead - Rear Side Nut	Contacts Not Included	Square	Unshielded	For Male Pins	Crimp
Hirose Electric USA, Inc. HR30-7R-10PC(71)			Receptacle Housing		Polyphenylene Sulfide (PPS)		7	Push-Pull			Polyphenylene Sulfide (PPS)		IP67/IP68 - Dust Tight Waterproof	10	Keyed			UL94 V-0								-25 °C	85 °C	Black	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Bulkhead - Rear Side Nut	Contacts Not Included	Square	Unshielded	For Male Pins	Crimp
Hirose Electric USA, Inc. HR30-6PA-6S
Hirose Electric USA, Inc. HR30-7R-12PC(71)			Receptacle Housing		Polyphenylene Sulfide (PPS)		7	Push-Pull			Polyphenylene Sulfide (PPS)		IP67/IP68 - Dust Tight Waterproof	12	Keyed			UL94 V-0								-25 °C	85 °C	Black	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Bulkhead - Rear Side Nut	Contacts Not Included	Square	Unshielded	For Male Pins	Crimp
Hirose Electric USA, Inc. HR30-7PB-12SC		Free Hanging (In-Line)	Plug Housing		Polyphenylene Sulfide (PPS)		7	Push-Pull			Polyphenylene Sulfide (PPS)		IP67/IP68 - Dust Tight Waterproof	12	Keyed			UL94 V-0	Backshell Strain Relief							-25 °C	85 °C	Black	1 Backshell 1 Spring 2 pc Connector		Contacts Not Included	Square	Unshielded	For Female Sockets	Crimp
Hirose Electric USA, Inc. HR30-7P-C(71)							7										Black		Contains Strap																	HR30 Series Plugs	Cap (Cover)
Hirose Electric USA, Inc. HR30-SC-111																			Insulation Support	Phosphor Bronze														Signal Stamped	Socket			Phosphor Bronze	30 AWG	26 AWG	Gold	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.21
		10	$ 7.06
		25	$ 6.38
		40	$ 6.06
		80	$ 5.62
		230	$ 5.04
		440	$ 4.72
		945	$ 4.38
		2400	$ 4.08

Description

General part information

HR30 Series

12 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Strain Relief

Documents

Technical documentation and resources

Datasheet

HR30 Overmold Wiring Procedure

Datasheet

HR30 Series, Overmold

Datasheet
