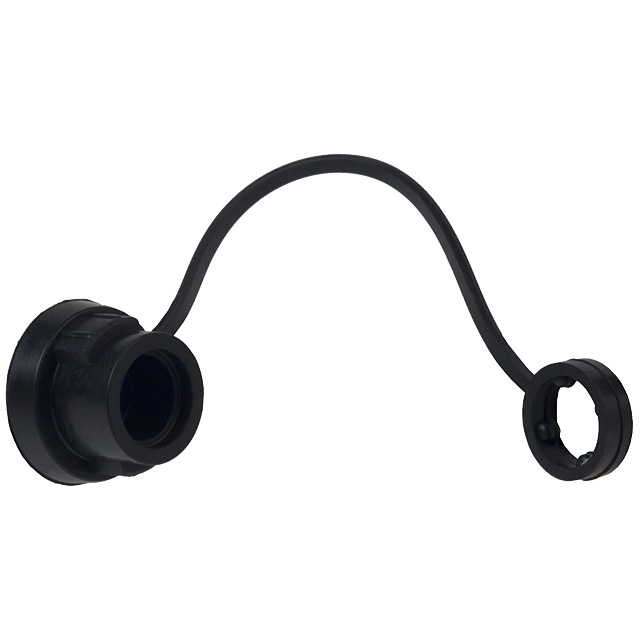

HR30-7P-C(71)

Obsolete

Hirose Electric USA, Inc.

CONN COVER 7 BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HR30-7P-C(71)

Obsolete

Hirose Electric USA, Inc.

CONN COVER 7 BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR30-7P-C(71)

Accessory Type	Cap (Cover)
Color	Black
Features	Contains Strap
For Use With/Related Products	HR30 Series Plugs
Shell Size - Insert	7

HR30 Series

Part	Backshell Material, Plating	Mounting Type	Connector Type	Applications	Shell Material	Voltage Rating	Shell Size - Insert	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Contact Finish - Mating	Ingress Protection	Number of Positions	Orientation	Primary Material	Color	Material Flammability Rating	Features	Contact Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Includes	Mounting Feature	Note	Contact Shape	Shielding	Type	Contact Type	For Use With/Related Products	Accessory Type	Termination Finish	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Finish	Contact Termination
Hirose Electric USA, Inc. HR30-6PA-6P(71)	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Male Pins Plug	Industrial Marine Medical	Polybutylene Terephthalate (PBT)	100 VAC 140 VDC	6	Push-Pull	0.203 Ám	8 Áin	Polyphenylene Sulfide (PPS)	Gold	IP67/IP68 - Dust Tight Waterproof	6	Keyed	Plastic	Black	UL94 V-0	Backshell Strain Relief	Brass	3.5 mm	4.3 mm	0.169 in	0.138 in	2 A	-25 °C	85 °C
Hirose Electric USA, Inc. HR30-7J-12P(71)	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Jack Male Pins	Industrial Marine Medical	Polyphenylene Sulfide (PPS)	30 VAC 42 VDC	7	Push-Pull	0.203 Ám	8 Áin	Polyphenylene Sulfide (PPS)	Gold	IP67/IP68 - Dust Tight Waterproof	12	Keyed	Plastic	Black	UL94 V-0	Backshell Strain Relief	Copper Alloy	6.2 mm	7 mm	0.276 in	0.244 in	2 A	-25 °C	85 °C
Hirose Electric USA, Inc. HR30-7R-12PC			Receptacle Housing		Polyphenylene Sulfide (PPS)		7	Push-Pull			Polyphenylene Sulfide (PPS)		IP67/IP68 - Dust Tight Waterproof	12	Keyed			UL94 V-0								-25 °C	85 °C	Black	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Bulkhead - Rear Side Nut	Contacts Not Included	Square	Unshielded	For Male Pins	Crimp
Hirose Electric USA, Inc. HR30-7R-10PC			Receptacle Housing		Polyphenylene Sulfide (PPS)		7	Push-Pull			Polyphenylene Sulfide (PPS)		IP67/IP68 - Dust Tight Waterproof	10	Keyed			UL94 V-0								-25 °C	85 °C	Black	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Bulkhead - Rear Side Nut	Contacts Not Included	Square	Unshielded	For Male Pins	Crimp
Hirose Electric USA, Inc. HR30-7R-10PC(71)			Receptacle Housing		Polyphenylene Sulfide (PPS)		7	Push-Pull			Polyphenylene Sulfide (PPS)		IP67/IP68 - Dust Tight Waterproof	10	Keyed			UL94 V-0								-25 °C	85 °C	Black	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Bulkhead - Rear Side Nut	Contacts Not Included	Square	Unshielded	For Male Pins	Crimp
Hirose Electric USA, Inc. HR30-6PA-6S
Hirose Electric USA, Inc. HR30-7R-12PC(71)			Receptacle Housing		Polyphenylene Sulfide (PPS)		7	Push-Pull			Polyphenylene Sulfide (PPS)		IP67/IP68 - Dust Tight Waterproof	12	Keyed			UL94 V-0								-25 °C	85 °C	Black	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Bulkhead - Rear Side Nut	Contacts Not Included	Square	Unshielded	For Male Pins	Crimp
Hirose Electric USA, Inc. HR30-7PB-12SC		Free Hanging (In-Line)	Plug Housing		Polyphenylene Sulfide (PPS)		7	Push-Pull			Polyphenylene Sulfide (PPS)		IP67/IP68 - Dust Tight Waterproof	12	Keyed			UL94 V-0	Backshell Strain Relief							-25 °C	85 °C	Black	1 Backshell 1 Spring 2 pc Connector		Contacts Not Included	Square	Unshielded	For Female Sockets	Crimp
Hirose Electric USA, Inc. HR30-7P-C(71)							7										Black		Contains Strap																	HR30 Series Plugs	Cap (Cover)
Hirose Electric USA, Inc. HR30-SC-111																			Insulation Support	Phosphor Bronze														Signal Stamped	Socket			Phosphor Bronze	30 AWG	26 AWG	Gold	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

HR30 Series

Connector Cap (Cover) 7 Black

Documents

Technical documentation and resources
