HR30-7R-12PC

Obsolete

Hirose Electric USA, Inc.

CONN RCPT HSNG MALE 12POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HR30-7R-12PC

Obsolete

Hirose Electric USA, Inc.

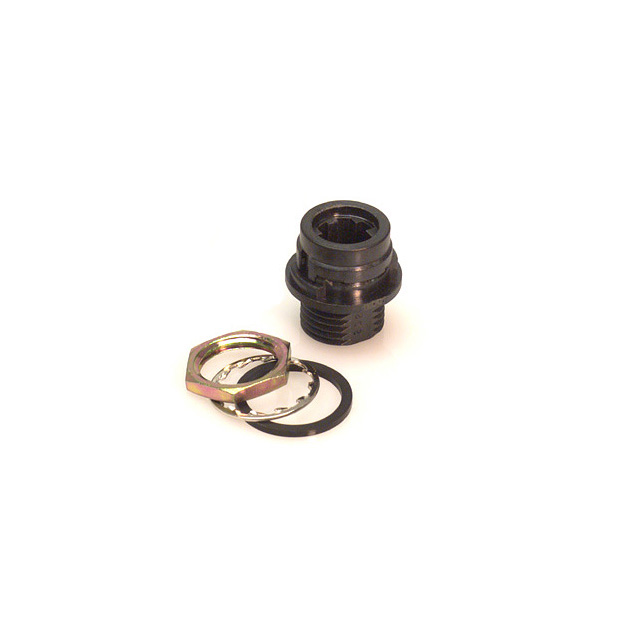

CONN RCPT HSNG MALE 12POS PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR30-7R-12PC

Connector Type	Receptacle Housing
Contact Shape	Square
Contact Type	Crimp
Fastening Type	Push-Pull
Housing Color	Black
Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Shell Material	Polyphenylene Sulfide (PPS)
Shell Size - Insert	7
Shielding	Unshielded
Type	For Male Pins

HR30 Series

Part	Backshell Material, Plating	Mounting Type	Connector Type	Applications	Shell Material	Voltage Rating	Shell Size - Insert	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Contact Finish - Mating	Ingress Protection	Number of Positions	Orientation	Primary Material	Color	Material Flammability Rating	Features	Contact Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Includes	Mounting Feature	Note	Contact Shape	Shielding	Type	Contact Type	For Use With/Related Products	Accessory Type	Termination Finish	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Finish	Contact Termination
Hirose Electric USA, Inc. HR30-6PA-6P(71)	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Male Pins Plug	Industrial Marine Medical	Polybutylene Terephthalate (PBT)	100 VAC 140 VDC	6	Push-Pull	0.203 Ám	8 Áin	Polyphenylene Sulfide (PPS)	Gold	IP67/IP68 - Dust Tight Waterproof	6	Keyed	Plastic	Black	UL94 V-0	Backshell Strain Relief	Brass	3.5 mm	4.3 mm	0.169 in	0.138 in	2 A	-25 °C	85 °C
Hirose Electric USA, Inc. HR30-7J-12P(71)	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Jack Male Pins	Industrial Marine Medical	Polyphenylene Sulfide (PPS)	30 VAC 42 VDC	7	Push-Pull	0.203 Ám	8 Áin	Polyphenylene Sulfide (PPS)	Gold	IP67/IP68 - Dust Tight Waterproof	12	Keyed	Plastic	Black	UL94 V-0	Backshell Strain Relief	Copper Alloy	6.2 mm	7 mm	0.276 in	0.244 in	2 A	-25 °C	85 °C
Hirose Electric USA, Inc. HR30-7R-12PC			Receptacle Housing		Polyphenylene Sulfide (PPS)		7	Push-Pull			Polyphenylene Sulfide (PPS)		IP67/IP68 - Dust Tight Waterproof	12	Keyed			UL94 V-0								-25 °C	85 °C	Black	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Bulkhead - Rear Side Nut	Contacts Not Included	Square	Unshielded	For Male Pins	Crimp
Hirose Electric USA, Inc. HR30-7R-10PC			Receptacle Housing		Polyphenylene Sulfide (PPS)		7	Push-Pull			Polyphenylene Sulfide (PPS)		IP67/IP68 - Dust Tight Waterproof	10	Keyed			UL94 V-0								-25 °C	85 °C	Black	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Bulkhead - Rear Side Nut	Contacts Not Included	Square	Unshielded	For Male Pins	Crimp
Hirose Electric USA, Inc. HR30-7R-10PC(71)			Receptacle Housing		Polyphenylene Sulfide (PPS)		7	Push-Pull			Polyphenylene Sulfide (PPS)		IP67/IP68 - Dust Tight Waterproof	10	Keyed			UL94 V-0								-25 °C	85 °C	Black	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Bulkhead - Rear Side Nut	Contacts Not Included	Square	Unshielded	For Male Pins	Crimp
Hirose Electric USA, Inc. HR30-6PA-6S
Hirose Electric USA, Inc. HR30-7R-12PC(71)			Receptacle Housing		Polyphenylene Sulfide (PPS)		7	Push-Pull			Polyphenylene Sulfide (PPS)		IP67/IP68 - Dust Tight Waterproof	12	Keyed			UL94 V-0								-25 °C	85 °C	Black	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Bulkhead - Rear Side Nut	Contacts Not Included	Square	Unshielded	For Male Pins	Crimp
Hirose Electric USA, Inc. HR30-7PB-12SC		Free Hanging (In-Line)	Plug Housing		Polyphenylene Sulfide (PPS)		7	Push-Pull			Polyphenylene Sulfide (PPS)		IP67/IP68 - Dust Tight Waterproof	12	Keyed			UL94 V-0	Backshell Strain Relief							-25 °C	85 °C	Black	1 Backshell 1 Spring 2 pc Connector		Contacts Not Included	Square	Unshielded	For Female Sockets	Crimp
Hirose Electric USA, Inc. HR30-7P-C(71)							7										Black		Contains Strap																	HR30 Series Plugs	Cap (Cover)
Hirose Electric USA, Inc. HR30-SC-111																			Insulation Support	Phosphor Bronze														Signal Stamped	Socket			Phosphor Bronze	30 AWG	26 AWG	Gold	Crimp
