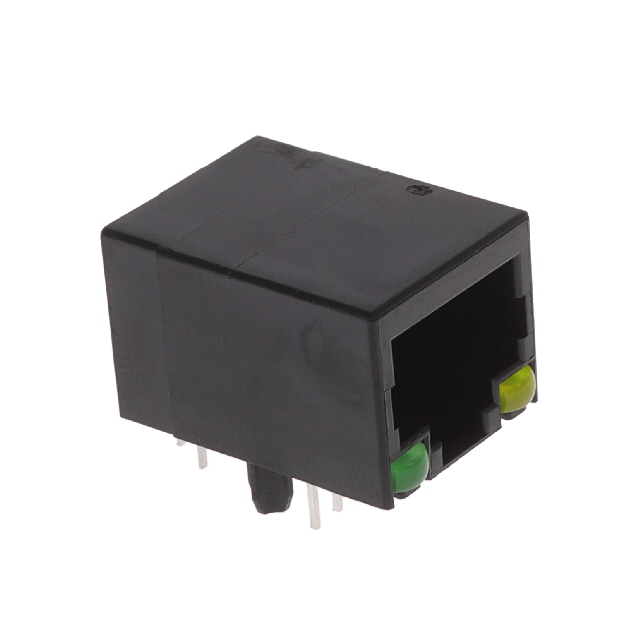

MTJ-88TX1-LH
ActiveAdam Tech
RJ45 MODULAR JACK, DIP, SIDE ENT
Deep-Dive with AI
Search across all available documentation for this part.
MTJ-88TX1-LH
ActiveAdam Tech
RJ45 MODULAR JACK, DIP, SIDE ENT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MTJ-88TX1-LH |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Features | Solder Retention, Board Guide |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| LED Color | Yellow, Green |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Shielding | Unshielded |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.35 | |
| 10 | $ 1.79 | |||
| 25 | $ 1.62 | |||
| 40 | $ 1.53 | |||
| 80 | $ 1.42 | |||
| 230 | $ 1.26 | |||
Description
General part information
MTJ-88 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded
