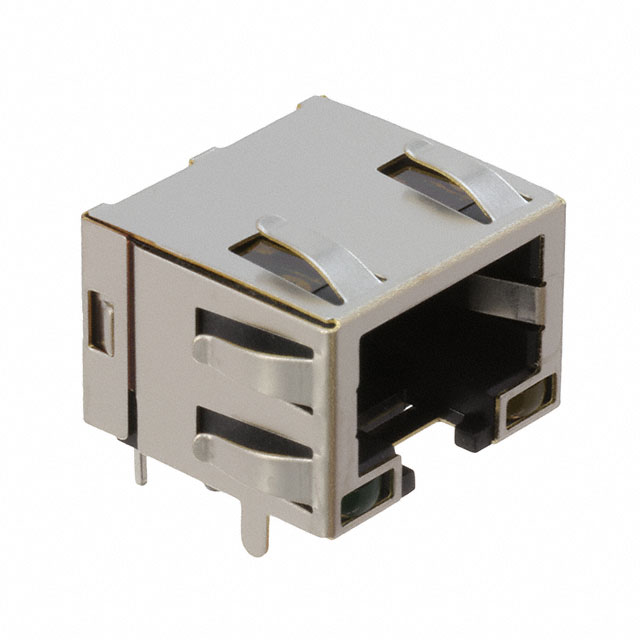

MTJ-88AAX1-FSV-PG-LV

Active

Adam Tech

RJ45 MODULAR JACK, SHIELDED, PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsComms, AudioVideo, Data, Other Signaling-circuit Acc.Datasheet

MTJ-88AAX1-FSV-PG-LV

Active

Adam Tech

RJ45 MODULAR JACK, SHIELDED, PNL

Deep-Dive with AI

DocumentsComms, AudioVideo, Data, Other Signaling-circuit Acc.Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTJ-88AAX1-FSV-PG-LV

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Features	Solder Retention, Board Guide
Housing Material	Glass Filled, Polyamide (PA46), Nylon 4/6
LED Color	Green - Yellow, Green
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

MTJ-88 Series

Part	Number of Ports	Number of Rows	Number of Positions/Contacts	Connector Type	LED Color	Features	Housing Material	Contact Finish Thickness	Shielding	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Contact Finish	Tab Direction	Contact Material	Termination	Height Above Board	Height Above Board	Shield Material	Number of Cores per Jack	Orientation
Adam Tech MTJ-88TX1-LH	1	1	8p8c (RJ45 Ethernet)	Jack	Green Yellow	Board Guide Solder Retention	Polybutylene Terephthalate (PBT) Glass Filled	Flash	Unshielded	Through Hole	85 °C	-40 °C	90 °	Gold	Down	Copper Alloy	Solder
Adam Tech MTJ-88ARX1-FSM-L16	1	1	8p8c (RJ45 Ethernet)	Jack	Green Yellow	Board Guide Solder Retention	Polybutylene Terephthalate (PBT) Glass Filled	Flash	Shielded	Through Hole	85 °C	-40 °C	90 °	Gold	Up	Phosphor Bronze	Solder
Adam Tech MTJ-88TVX1-FSJ-LG-M149	1	1		Jack	Yellow - Green	Board Guide Solder Retention	Polybutylene Terephthalate (PBT)	Flash	Shielded	Through Hole	70 °C	0 °C	90 °	Gold	Up	Copper Alloy	Solder	16.87 mm	0.664 in	Brass Nickel Coated	8
Adam Tech MTJ-88SX1-FSD-PG-L35-M357Y	1	1		Jack	Green - Green Yellow	Board Lock Solder Retention	Thermoplastic	Flash	Shielded EMI Finger	Through Hole	70 °C	0 °C	90 °	Gold	Up	Phosphor Bronze	Solder	13.49 mm	0.531 in	Stainless Steel	8
Adam Tech MTJ-88ARX1-LD	1	1	8p8c (RJ45 Ethernet)	Jack	Green - Green	Board Guide	Polybutylene Terephthalate (PBT) Glass Filled	Flash	Shielded	Through Hole	85 °C	-40 °C	90 °	Gold	Up	Phosphor Bronze	Solder
Adam Tech MTJ-88EX1	1	1	8p8c (RJ45 Ethernet)	Jack	Does Not Contain LED	Board Lock Solder Retention	Polybutylene Terephthalate (PBT)	Flash	Unshielded	Through Hole	125 °C	-40 °C	90 °	Gold	Up	Phosphor Bronze	Solder
Adam Tech MTJ-88TX1-FSD-PG-LH-M5	1	1		Jack	Green Yellow	Board Guide Solder Retention	Thermoplastic	Flash	Shielded EMI Finger	Through Hole	70 °C	0 °C	90 °	Gold	Down	Copper Alloy	Solder	13.49 mm	0.531 in	Copper Alloy Nickel Coated
Adam Tech MTJ-88DX1-LH	1	1	8p8c (RJ45 Ethernet)	Jack	Green Yellow	Board Lock Solder Retention	Glass Filled Nylon 4/6 Polyamide (PA46)	Flash	Unshielded	Through Hole	85 °C	-40 °C		Gold	Up	Phosphor Bronze	Solder					Vertical
Adam Tech MTJ-88TX1-FSD-PG-D1LH-M81	1	1		Jack	Green Yellow	Board Guide Solder Retention	Polybutylene Terephthalate (PBT) Glass Filled	Flash	Shielded EMI Finger	Through Hole	70 °C	-20 C	90 °	Gold	Down	Copper Alloy	Solder	13.49 mm	0.531 in	Copper Alloy Nickel Coated
Adam Tech MTJ-88AAX1-FSV-PG-LV	1	1	8p8c (RJ45 Ethernet)	Jack	Green Green - Yellow	Board Guide Solder Retention	Glass Filled Nylon 4/6 Polyamide (PA46)	Flash	Shielded EMI Finger	Through Hole	85 °C	-40 °C	90 °	Gold	Down	Phosphor Bronze	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.75
		10	$ 5.17
		25	$ 4.67
		40	$ 4.43
		80	$ 4.11
		230	$ 3.68

Description

General part information

MTJ-88 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger
