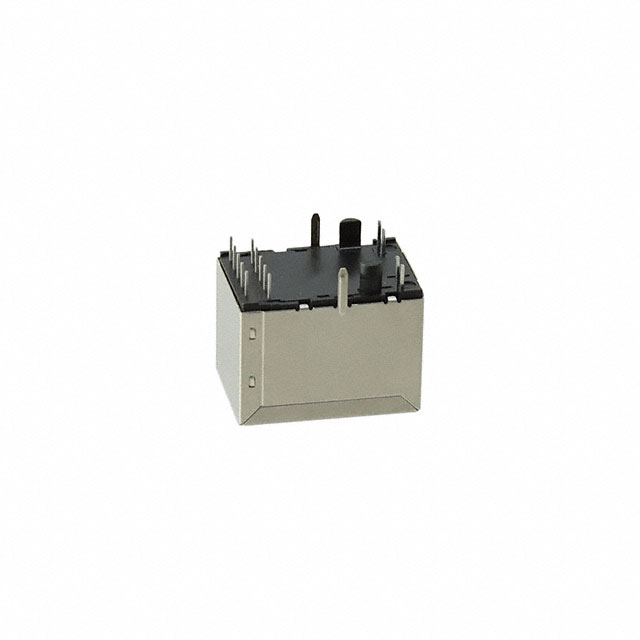

MTJ-88TVX1-FSJ-LG-M149

Active

Adam Tech

CONN JACK 1PORT PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsComms, AudioVideo, Data, Other Signaling-circuit Acc.Datasheet +1

MTJ-88TVX1-FSJ-LG-M149

Active

Adam Tech

CONN JACK 1PORT PCB

Deep-Dive with AI

DocumentsComms, AudioVideo, Data, Other Signaling-circuit Acc.Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTJ-88TVX1-FSJ-LG-M149

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Features	Solder Retention, Board Guide
Height Above Board	16.87 mm
Height Above Board	0.664 in
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Yellow - Green
Mounting Type	Through Hole
Number of Cores per Jack	8
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Brass, Nickel Coated
Shielding	Shielded
Tab Direction	Up
Termination	Solder

MTJ-88 Series

Part	Number of Ports	Number of Rows	Number of Positions/Contacts	Connector Type	LED Color	Features	Housing Material	Contact Finish Thickness	Shielding	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Contact Finish	Tab Direction	Contact Material	Termination	Height Above Board	Height Above Board	Shield Material	Number of Cores per Jack	Orientation
Adam Tech MTJ-88TX1-LH	1	1	8p8c (RJ45 Ethernet)	Jack	Green Yellow	Board Guide Solder Retention	Polybutylene Terephthalate (PBT) Glass Filled	Flash	Unshielded	Through Hole	85 °C	-40 °C	90 °	Gold	Down	Copper Alloy	Solder
Adam Tech MTJ-88ARX1-FSM-L16	1	1	8p8c (RJ45 Ethernet)	Jack	Green Yellow	Board Guide Solder Retention	Polybutylene Terephthalate (PBT) Glass Filled	Flash	Shielded	Through Hole	85 °C	-40 °C	90 °	Gold	Up	Phosphor Bronze	Solder
Adam Tech MTJ-88TVX1-FSJ-LG-M149	1	1		Jack	Yellow - Green	Board Guide Solder Retention	Polybutylene Terephthalate (PBT)	Flash	Shielded	Through Hole	70 °C	0 °C	90 °	Gold	Up	Copper Alloy	Solder	16.87 mm	0.664 in	Brass Nickel Coated	8
Adam Tech MTJ-88SX1-FSD-PG-L35-M357Y	1	1		Jack	Green - Green Yellow	Board Lock Solder Retention	Thermoplastic	Flash	Shielded EMI Finger	Through Hole	70 °C	0 °C	90 °	Gold	Up	Phosphor Bronze	Solder	13.49 mm	0.531 in	Stainless Steel	8
Adam Tech MTJ-88ARX1-LD	1	1	8p8c (RJ45 Ethernet)	Jack	Green - Green	Board Guide	Polybutylene Terephthalate (PBT) Glass Filled	Flash	Shielded	Through Hole	85 °C	-40 °C	90 °	Gold	Up	Phosphor Bronze	Solder
Adam Tech MTJ-88EX1	1	1	8p8c (RJ45 Ethernet)	Jack	Does Not Contain LED	Board Lock Solder Retention	Polybutylene Terephthalate (PBT)	Flash	Unshielded	Through Hole	125 °C	-40 °C	90 °	Gold	Up	Phosphor Bronze	Solder
Adam Tech MTJ-88TX1-FSD-PG-LH-M5	1	1		Jack	Green Yellow	Board Guide Solder Retention	Thermoplastic	Flash	Shielded EMI Finger	Through Hole	70 °C	0 °C	90 °	Gold	Down	Copper Alloy	Solder	13.49 mm	0.531 in	Copper Alloy Nickel Coated
Adam Tech MTJ-88DX1-LH	1	1	8p8c (RJ45 Ethernet)	Jack	Green Yellow	Board Lock Solder Retention	Glass Filled Nylon 4/6 Polyamide (PA46)	Flash	Unshielded	Through Hole	85 °C	-40 °C		Gold	Up	Phosphor Bronze	Solder					Vertical
Adam Tech MTJ-88TX1-FSD-PG-D1LH-M81	1	1		Jack	Green Yellow	Board Guide Solder Retention	Polybutylene Terephthalate (PBT) Glass Filled	Flash	Shielded EMI Finger	Through Hole	70 °C	-20 C	90 °	Gold	Down	Copper Alloy	Solder	13.49 mm	0.531 in	Copper Alloy Nickel Coated
Adam Tech MTJ-88AAX1-FSV-PG-LV	1	1	8p8c (RJ45 Ethernet)	Jack	Green Green - Yellow	Board Guide Solder Retention	Glass Filled Nylon 4/6 Polyamide (PA46)	Flash	Shielded EMI Finger	Through Hole	85 °C	-40 °C	90 °	Gold	Down	Phosphor Bronze	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.44
		10	$ 7.69
		25	$ 7.09
		50	$ 6.67
		100	$ 6.27
