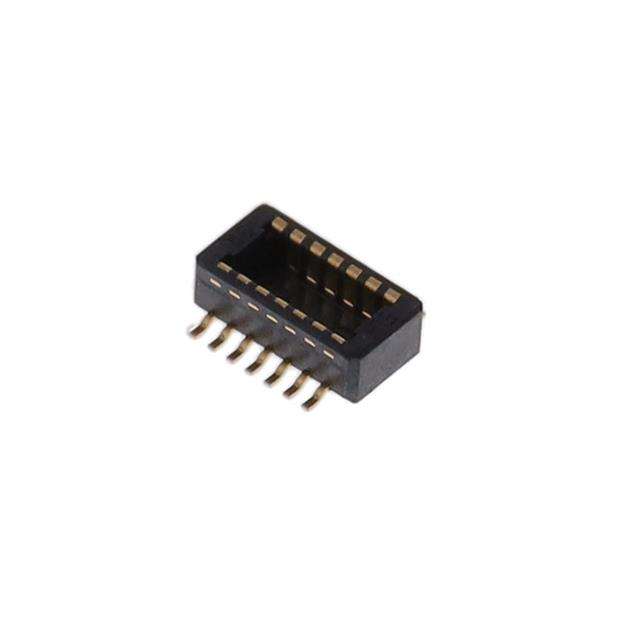

DF40GB-10DP-0.4V(51)

Active

Hirose Electric USA, Inc.

CONN HDR 10POS DUAL 0.4MM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF40GB-10DP-0.4V(51)

Active

Hirose Electric USA, Inc.

CONN HDR 10POS DUAL 0.4MM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF40GB-10DP-0.4V(51)

Connector Type	Outer Shroud Contacts, Plug
Contact Finish	Gold
Contact Finish Thickness	1.97 Áin
Contact Finish Thickness	0.05 Ám
Features	Solder Retention, Shielded
Height Above Board	1.14 mm
Height Above Board	0.045 in
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

DF40GB Series

Part	Connector Type	Mated Stacking Heights	Number of Positions	Mounting Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Pitch [x]	Pitch [x]	Features	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board
Hirose Electric USA, Inc. DF40GB(3.0)-70DS-0.4V(61)	Center Strip Contacts Receptacle	3 mm	70
Hirose Electric USA, Inc. DF40GB(3.0)-70DS-0.4V(51)	Center Strip Contacts Receptacle	3 mm	70	Surface Mount	2.9 mm	0.114 "	Gold	0.016 in	0.4 mm	Shielded Solder Retention	2
Hirose Electric USA, Inc. DF40GB(1.5)-10DS-0.4V(58)	Center Strip Contacts Receptacle	1.5 mm	10	Surface Mount	1.45 mm	0.057 in	Gold	0.016 in	0.4 mm	Shielded Solder Retention	2	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. DF40GB-48DP-0.4V(51)	Outer Shroud Contacts Plug	1.5 mm 3 mm	48	Surface Mount			Gold	0.016 in	0.4 mm	Shielded Solder Retention	2			1.14 mm	0.045 in
Hirose Electric USA, Inc. DF40GB-10DP-0.4V(51)	Outer Shroud Contacts Plug	1.5 mm	10	Surface Mount			Gold	0.016 in	0.4 mm	Shielded Solder Retention	2	1.97 Áin	0.05 Ám	1.14 mm	0.045 in
Hirose Electric USA, Inc. DF40GB-30DP-0.4V(51)	Outer Shroud Contacts Plug	1.5 mm	30	Surface Mount			Gold	0.016 in	0.4 mm	Shielded Solder Retention	2			1.14 mm	0.045 in
Hirose Electric USA, Inc. DF40GB-30DP-0.4V(58)	Outer Shroud Contacts Plug	1.5 mm	30	Surface Mount			Gold	0.016 in	0.4 mm	Shielded Solder Retention	2			1.14 mm	0.045 in
Hirose Electric USA, Inc. DF40GB(1.5)-30DS-0.4V(51)	Center Strip Contacts Receptacle	1.5 mm	30	Surface Mount	1.45 mm	0.057 in	Gold	0.016 in	0.4 mm	Shielded Solder Retention	2
Hirose Electric USA, Inc. DF40GB(1.5)-48DS-0.4V(51)	Center Strip Contacts Receptacle	1.5 mm	48	Surface Mount	1.45 mm	0.057 in	Gold	0.016 in	0.4 mm	Shielded Solder Retention	2
