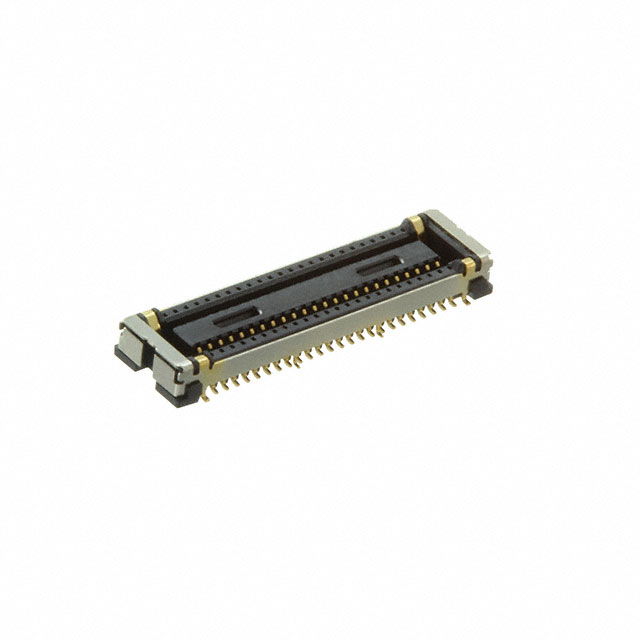

DF40GB(1.5)-48DS-0.4V(51)

Active

Hirose Electric USA, Inc.

BOARD STACKING CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DF40GB(1.5)-48DS-0.4V(51) Spec

DF40GB(1.5)-48DS-0.4V(51)

Active

Hirose Electric USA, Inc.

BOARD STACKING CONNECTOR

Deep-Dive with AI

DocumentsDatasheet DF40GB(1.5)-48DS-0.4V(51) Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF40GB(1.5)-48DS-0.4V(51)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention, Shielded
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	48
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

DF40GB Series

Part	Connector Type	Mated Stacking Heights	Number of Positions	Mounting Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Pitch [x]	Pitch [x]	Features	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board
Hirose Electric USA, Inc. DF40GB(3.0)-70DS-0.4V(61)	Center Strip Contacts Receptacle	3 mm	70
Hirose Electric USA, Inc. DF40GB(3.0)-70DS-0.4V(51)	Center Strip Contacts Receptacle	3 mm	70	Surface Mount	2.9 mm	0.114 "	Gold	0.016 in	0.4 mm	Shielded Solder Retention	2
Hirose Electric USA, Inc. DF40GB(1.5)-10DS-0.4V(58)	Center Strip Contacts Receptacle	1.5 mm	10	Surface Mount	1.45 mm	0.057 in	Gold	0.016 in	0.4 mm	Shielded Solder Retention	2	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. DF40GB-48DP-0.4V(51)	Outer Shroud Contacts Plug	1.5 mm 3 mm	48	Surface Mount			Gold	0.016 in	0.4 mm	Shielded Solder Retention	2			1.14 mm	0.045 in
Hirose Electric USA, Inc. DF40GB-10DP-0.4V(51)	Outer Shroud Contacts Plug	1.5 mm	10	Surface Mount			Gold	0.016 in	0.4 mm	Shielded Solder Retention	2	1.97 Áin	0.05 Ám	1.14 mm	0.045 in
Hirose Electric USA, Inc. DF40GB-30DP-0.4V(51)	Outer Shroud Contacts Plug	1.5 mm	30	Surface Mount			Gold	0.016 in	0.4 mm	Shielded Solder Retention	2			1.14 mm	0.045 in
Hirose Electric USA, Inc. DF40GB-30DP-0.4V(58)	Outer Shroud Contacts Plug	1.5 mm	30	Surface Mount			Gold	0.016 in	0.4 mm	Shielded Solder Retention	2			1.14 mm	0.045 in
Hirose Electric USA, Inc. DF40GB(1.5)-30DS-0.4V(51)	Center Strip Contacts Receptacle	1.5 mm	30	Surface Mount	1.45 mm	0.057 in	Gold	0.016 in	0.4 mm	Shielded Solder Retention	2
Hirose Electric USA, Inc. DF40GB(1.5)-48DS-0.4V(51)	Center Strip Contacts Receptacle	1.5 mm	48	Surface Mount	1.45 mm	0.057 in	Gold	0.016 in	0.4 mm	Shielded Solder Retention	2
