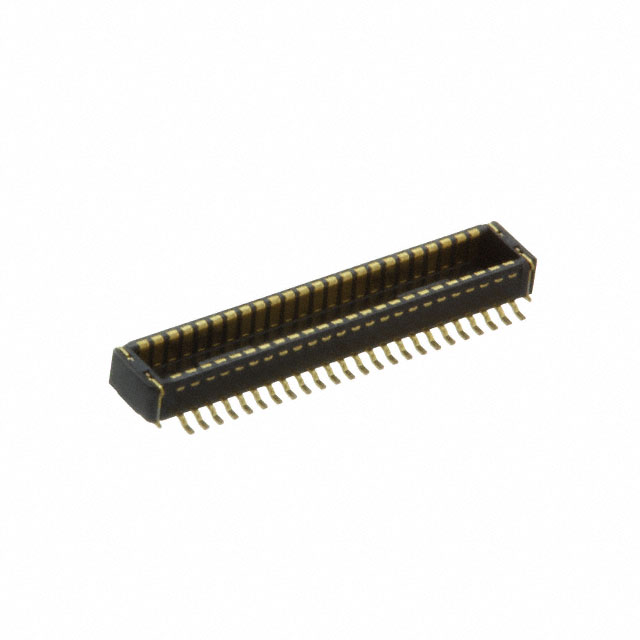

DF40GB-48DP-0.4V(51)
ActiveHirose Electric USA, Inc.
BOARD TO BOARD & MEZZANINE CONNECTORS 48P HDR W/METAL FTG USE W/SHLDED PRODUCT
Deep-Dive with AI
Search across all available documentation for this part.
DF40GB-48DP-0.4V(51)
ActiveHirose Electric USA, Inc.
BOARD TO BOARD & MEZZANINE CONNECTORS 48P HDR W/METAL FTG USE W/SHLDED PRODUCT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF40GB-48DP-0.4V(51) |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Features | Solder Retention, Shielded |
| Height Above Board | 1.14 mm |
| Height Above Board | 0.045 in |
| Mated Stacking Heights | 3 mm, 1.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 48 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.23 | |
| 10 | $ 1.04 | |||
| 25 | $ 0.98 | |||
| 50 | $ 0.93 | |||
| 100 | $ 0.89 | |||
| 250 | $ 0.83 | |||
| 500 | $ 0.79 | |||
| 1000 | $ 0.75 | |||
| 2500 | $ 0.72 | |||
| Digi-Reel® | 1 | $ 1.61 | ||
| 10 | $ 1.40 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.31 | |||
| 100 | $ 1.25 | |||
| 250 | $ 1.13 | |||
| 500 | $ 1.04 | |||
| 1000 | $ 0.89 | |||
| 2500 | $ 0.83 | |||
| Tape & Reel (TR) | 5000 | $ 0.67 | ||
| 10000 | $ 0.64 | |||
| 15000 | $ 0.62 | |||
Description
General part information
DF40GB Series
48 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
