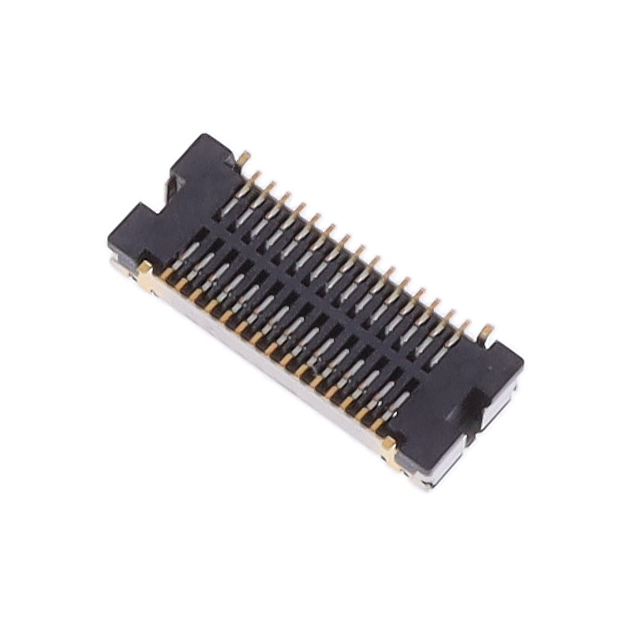

DF40GB(1.5)-30DS-0.4V(51)

Active

Hirose Electric USA, Inc.

CONN RCPT 30POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DF40GB(1.5)-30DS-0.4V(51) Spec

DF40GB(1.5)-30DS-0.4V(51)

Active

Hirose Electric USA, Inc.

CONN RCPT 30POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet DF40GB(1.5)-30DS-0.4V(51) Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF40GB(1.5)-30DS-0.4V(51)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention, Shielded
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

DF40GB Series

Part	Connector Type	Mated Stacking Heights	Number of Positions	Mounting Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Pitch [x]	Pitch [x]	Features	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board
Hirose Electric USA, Inc. DF40GB(3.0)-70DS-0.4V(61)	Center Strip Contacts Receptacle	3 mm	70
Hirose Electric USA, Inc. DF40GB(3.0)-70DS-0.4V(51)	Center Strip Contacts Receptacle	3 mm	70	Surface Mount	2.9 mm	0.114 "	Gold	0.016 in	0.4 mm	Shielded Solder Retention	2
Hirose Electric USA, Inc. DF40GB(1.5)-10DS-0.4V(58)	Center Strip Contacts Receptacle	1.5 mm	10	Surface Mount	1.45 mm	0.057 in	Gold	0.016 in	0.4 mm	Shielded Solder Retention	2	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. DF40GB-48DP-0.4V(51)	Outer Shroud Contacts Plug	1.5 mm 3 mm	48	Surface Mount			Gold	0.016 in	0.4 mm	Shielded Solder Retention	2			1.14 mm	0.045 in
Hirose Electric USA, Inc. DF40GB-10DP-0.4V(51)	Outer Shroud Contacts Plug	1.5 mm	10	Surface Mount			Gold	0.016 in	0.4 mm	Shielded Solder Retention	2	1.97 Áin	0.05 Ám	1.14 mm	0.045 in
Hirose Electric USA, Inc. DF40GB-30DP-0.4V(51)	Outer Shroud Contacts Plug	1.5 mm	30	Surface Mount			Gold	0.016 in	0.4 mm	Shielded Solder Retention	2			1.14 mm	0.045 in
Hirose Electric USA, Inc. DF40GB-30DP-0.4V(58)	Outer Shroud Contacts Plug	1.5 mm	30	Surface Mount			Gold	0.016 in	0.4 mm	Shielded Solder Retention	2			1.14 mm	0.045 in
Hirose Electric USA, Inc. DF40GB(1.5)-30DS-0.4V(51)	Center Strip Contacts Receptacle	1.5 mm	30	Surface Mount	1.45 mm	0.057 in	Gold	0.016 in	0.4 mm	Shielded Solder Retention	2
Hirose Electric USA, Inc. DF40GB(1.5)-48DS-0.4V(51)	Center Strip Contacts Receptacle	1.5 mm	48	Surface Mount	1.45 mm	0.057 in	Gold	0.016 in	0.4 mm	Shielded Solder Retention	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.32
		10	$ 1.11
		25	$ 1.07
		50	$ 1.05
		100	$ 1.00
		250	$ 0.91
		500	$ 0.82
		1000	$ 0.73
		2500	$ 0.66
	Digi-Reel®	1	$ 1.32
		10	$ 1.11
		25	$ 1.07
		50	$ 1.05
		100	$ 1.00
		250	$ 0.91
		500	$ 0.82
		1000	$ 0.73
		2500	$ 0.66
	Tape & Reel (TR)	5000	$ 0.52
		10000	$ 0.49
		15000	$ 0.48

Description

General part information

DF40GB Series

30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

DF40GB(1.5)-30DS-0.4V(51) Spec

Datasheet
