ATS-50375G-C1-R0

Active

Advanced Thermal Solutions Inc.

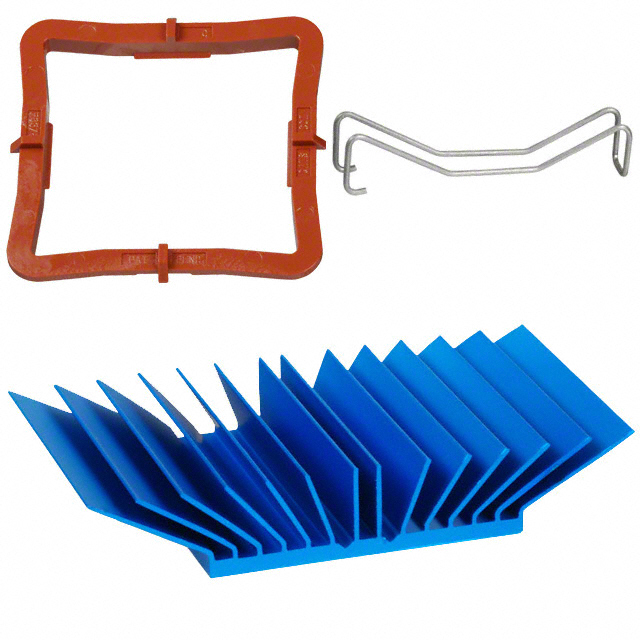

HEAT SINKS MAXIFLOW HEAT SINK W/MAXIGRIP ATTACHMENT, T766, BLUE-ANODIZED, 37.5X37.5X12.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsmaxiGRIP Installation Guide Datasheet +2

ATS-50375G-C1-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINKS MAXIFLOW HEAT SINK W/MAXIGRIP ATTACHMENT, T766, BLUE-ANODIZED, 37.5X37.5X12.5MM

Deep-Dive with AI

DocumentsmaxiGRIP Installation Guide Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-50375G-C1-R0

Attachment Method	Clip, Thermal Material
Fin Height	12.5 mm
Fin Height	0.492 in
Length	37.5 mm
Length	1.476 in
Material	Aluminum
Material Finish	Blue Anodized
Package Cooled	BGA
Shape	Angled Fins, Square
Thermal Resistance @ Forced Air Flow	2.8 °C/W, 200 LFM
Type	Top Mount
Width [y]	1.476 in
Width [y]	37.5 mm

ATS-502 Series

Heat Sinks maxiFLOW Heat Sink w/maxiGRIP Attachment, T766, Blue-Anodized, 37.5x37.5x17.5mm

Part	Type	Shape	Fin Height [z]	Fin Height [z]	Length [x]	Length	Thermal Resistance @ Forced Air Flow	Material Finish	Width	Width [x]	Package Cooled	Attachment Method	Material	Length [x]	Width [x]	Length	Width [y]	Width [y]	Fin Height	Fin Height
Advanced Thermal Solutions Inc. ATS-50450P-C3-R0	Top Mount	Angled Fins Square	0.689 in	17.5 mm	1.772 "	45 mm	1.6 °C/W 200 LFM	Blue Anodized	45 mm	1.772 in	BGA	Clip Thermal Material	Aluminum
Advanced Thermal Solutions Inc. ATS-50350B-C1-R0	Top Mount	Angled Fins Square	0.295 in	7.5 mm	1.378 in		5.3 °C/W 200 LFM	Blue Anodized	35 mm	1.378 in	BGA	Clip Thermal Material	Aluminum	35 mm
Advanced Thermal Solutions Inc. ATS-50290B-C0-R0	Top Mount	Angled Fins Square	0.295 in	7.5 mm	1.142 in		7.4 °C/W	Blue Anodized		1.142 in	BGA	Clip	Aluminum	29 mm	29 mm
Advanced Thermal Solutions Inc. ATS-50400P-C3-R0	Top Mount	Angled Fins Square	0.689 in	17.5 mm			2 °C/W 200 LFM	Blue Anodized		1.575 in	BGA	Clip Thermal Material	Aluminum		40 mm
Advanced Thermal Solutions Inc. ATS-50425P-C1-R0	Top Mount	Angled Fins Square	0.689 in	17.5 mm		42.5 mm	1.9 °C/W	Blue Anodized			BGA	Clip Thermal Material	Aluminum			1.673 in
Advanced Thermal Solutions Inc. ATS-50230P-C1-R0	Top Mount	Angled Fins Square	0.689 in	17.5 mm	0.9 in		5.1 °C/W	Blue Anodized			BGA	Clip Thermal Material	Aluminum	23 mm			0.906 in	23.01 mm
Advanced Thermal Solutions Inc. ATS-50375P-C1-R0	Top Mount	Angled Fins Square	0.689 in	17.5 mm		37.5 mm	2.1 °C/W 200 LFM	Blue Anodized			BGA	Clip Thermal Material	Aluminum			1.476 in	1.476 in	37.5 mm
Advanced Thermal Solutions Inc. ATS-50350P-C1-R0	Top Mount	Angled Fins Square	0.689 in	17.5 mm	1.378 in		2.3 °C/W	Blue Anodized	35 mm	1.378 in	BGA	Clip Thermal Material	Aluminum	35 mm
Advanced Thermal Solutions Inc. ATS-50375G-C1-R0	Top Mount	Angled Fins Square				37.5 mm	2.8 °C/W 200 LFM	Blue Anodized			BGA	Clip Thermal Material	Aluminum			1.476 in	1.476 in	37.5 mm	12.5 mm	0.492 in
Advanced Thermal Solutions Inc. ATS-50310B-C0-R0	Top Mount	Angled Fins Square	0.295 in	7.5 mm		30.99 mm	6.9 °C/W 200 LFM	Blue Anodized			BGA	Clip	Aluminum			1.22 in
