ATS-50290B-C0-R0

Active

Advanced Thermal Solutions Inc.

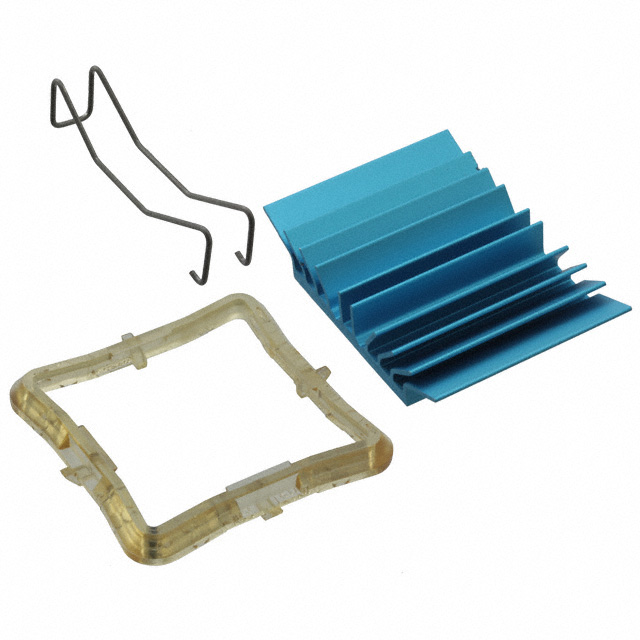

HEAT SINK 29X29 X 7.5MM W/O TIM

Deep-Dive with AI

Search across all available documentation for this part.

ATS-50290B-C0-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINK 29X29 X 7.5MM W/O TIM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-50290B-C0-R0

Attachment Method	Clip
Fin Height [z]	0.295 in
Fin Height [z]	7.5 mm
Length [x]	29 mm
Length [x]	1.142 in
Material	Aluminum
Material Finish	Blue Anodized
Package Cooled	BGA
Shape	Angled Fins, Square
Thermal Resistance @ Forced Air Flow	7.4 °C/W
Type	Top Mount
Width [x]	29 mm
Width [x]	1.142 in

ATS-502 Series

Heat Sinks maxiFLOW Heat Sink w/maxiGRIP Attachment, T766, Blue-Anodized, 37.5x37.5x17.5mm

Part	Type	Shape	Fin Height [z]	Fin Height [z]	Length [x]	Length	Thermal Resistance @ Forced Air Flow	Material Finish	Width	Width [x]	Package Cooled	Attachment Method	Material	Length [x]	Width [x]	Length	Width [y]	Width [y]	Fin Height	Fin Height
Advanced Thermal Solutions Inc. ATS-50450P-C3-R0	Top Mount	Angled Fins Square	0.689 in	17.5 mm	1.772 "	45 mm	1.6 °C/W 200 LFM	Blue Anodized	45 mm	1.772 in	BGA	Clip Thermal Material	Aluminum
Advanced Thermal Solutions Inc. ATS-50350B-C1-R0	Top Mount	Angled Fins Square	0.295 in	7.5 mm	1.378 in		5.3 °C/W 200 LFM	Blue Anodized	35 mm	1.378 in	BGA	Clip Thermal Material	Aluminum	35 mm
Advanced Thermal Solutions Inc. ATS-50290B-C0-R0	Top Mount	Angled Fins Square	0.295 in	7.5 mm	1.142 in		7.4 °C/W	Blue Anodized		1.142 in	BGA	Clip	Aluminum	29 mm	29 mm
Advanced Thermal Solutions Inc. ATS-50400P-C3-R0	Top Mount	Angled Fins Square	0.689 in	17.5 mm			2 °C/W 200 LFM	Blue Anodized		1.575 in	BGA	Clip Thermal Material	Aluminum		40 mm
Advanced Thermal Solutions Inc. ATS-50425P-C1-R0	Top Mount	Angled Fins Square	0.689 in	17.5 mm		42.5 mm	1.9 °C/W	Blue Anodized			BGA	Clip Thermal Material	Aluminum			1.673 in
Advanced Thermal Solutions Inc. ATS-50230P-C1-R0	Top Mount	Angled Fins Square	0.689 in	17.5 mm	0.9 in		5.1 °C/W	Blue Anodized			BGA	Clip Thermal Material	Aluminum	23 mm			0.906 in	23.01 mm
Advanced Thermal Solutions Inc. ATS-50375P-C1-R0	Top Mount	Angled Fins Square	0.689 in	17.5 mm		37.5 mm	2.1 °C/W 200 LFM	Blue Anodized			BGA	Clip Thermal Material	Aluminum			1.476 in	1.476 in	37.5 mm
Advanced Thermal Solutions Inc. ATS-50350P-C1-R0	Top Mount	Angled Fins Square	0.689 in	17.5 mm	1.378 in		2.3 °C/W	Blue Anodized	35 mm	1.378 in	BGA	Clip Thermal Material	Aluminum	35 mm
Advanced Thermal Solutions Inc. ATS-50375G-C1-R0	Top Mount	Angled Fins Square				37.5 mm	2.8 °C/W 200 LFM	Blue Anodized			BGA	Clip Thermal Material	Aluminum			1.476 in	1.476 in	37.5 mm	12.5 mm	0.492 in
Advanced Thermal Solutions Inc. ATS-50310B-C0-R0	Top Mount	Angled Fins Square	0.295 in	7.5 mm		30.99 mm	6.9 °C/W 200 LFM	Blue Anodized			BGA	Clip	Aluminum			1.22 in
