ATS-50450P-C3-R0
ActiveAdvanced Thermal Solutions Inc.

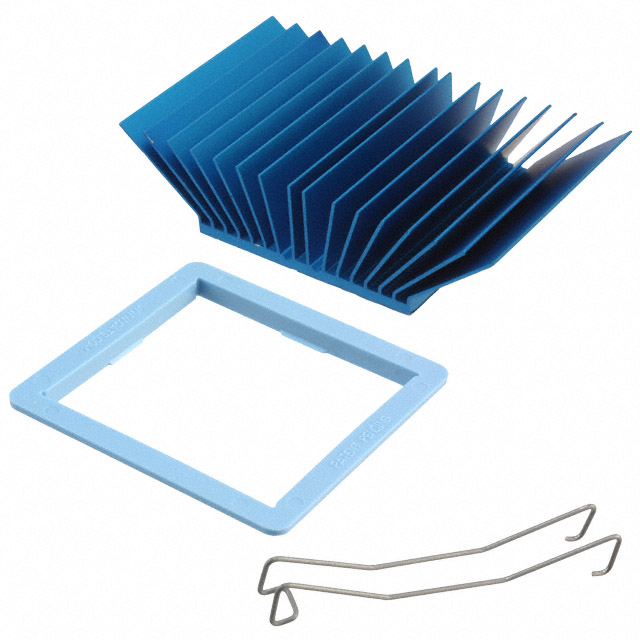

HEAT SINK 45X45X17.5MM T766
Deep-Dive with AI
Search across all available documentation for this part.
ATS-50450P-C3-R0
ActiveAdvanced Thermal Solutions Inc.
HEAT SINK 45X45X17.5MM T766
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS-50450P-C3-R0 |
|---|---|
| Attachment Method | Clip, Thermal Material |
| Fin Height [z] | 0.689 in |
| Fin Height [z] | 17.5 mm |
| Length | 45 mm |
| Length [x] | 1.772 " |
| Material | Aluminum |
| Material Finish | Blue Anodized |
| Package Cooled | BGA |
| Shape | Angled Fins, Square |
| Thermal Resistance @ Forced Air Flow | 1.6 °C/W, 200 LFM |
| Type | Top Mount |
| Width | 45 mm |
| Width [x] | 1.772 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.85 | |
| 10 | $ 11.20 | |||
| 25 | $ 10.54 | |||
| 50 | $ 9.88 | |||
| 100 | $ 9.22 | |||
| 250 | $ 8.56 | |||
| 500 | $ 8.40 | |||
| 1000 | $ 8.23 | |||
Description
General part information
ATS-502 Series
Heat Sinks maxiFLOW Heat Sink w/maxiGRIP Attachment, T766, Blue-Anodized, 37.5x37.5x17.5mm
Documents
Technical documentation and resources
