ATS-50400P-C3-R0
ActiveAdvanced Thermal Solutions Inc.

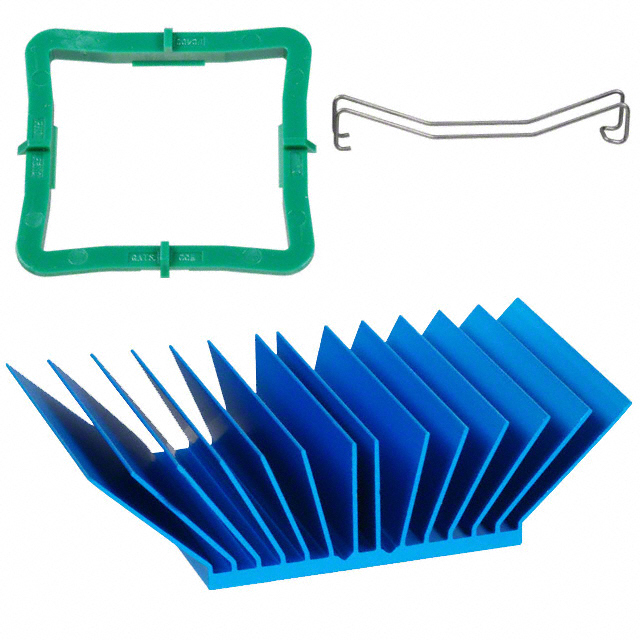

HEATSINK 40X40X17.5MM W/PHS CHG
Deep-Dive with AI
Search across all available documentation for this part.
ATS-50400P-C3-R0
ActiveAdvanced Thermal Solutions Inc.
HEATSINK 40X40X17.5MM W/PHS CHG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS-50400P-C3-R0 |
|---|---|
| Attachment Method | Clip, Thermal Material |
| Fin Height [z] | 0.689 in |
| Fin Height [z] | 17.5 mm |
| Material | Aluminum |
| Material Finish | Blue Anodized |
| Package Cooled | BGA |
| Shape | Angled Fins, Square |
| Thermal Resistance @ Forced Air Flow | 2 °C/W, 200 LFM |
| Type | Top Mount |
| Width [x] | 1.575 in |
| Width [x] | 40 mm |
ATS-502 Series
Heat Sinks maxiFLOW Heat Sink w/maxiGRIP Attachment, T766, Blue-Anodized, 37.5x37.5x17.5mm
| Part | Type | Shape | Fin Height [z] | Fin Height [z] | Length [x] | Length | Thermal Resistance @ Forced Air Flow | Material Finish | Width | Width [x] | Package Cooled | Attachment Method | Material | Length [x] | Width [x] | Length | Width [y] | Width [y] | Fin Height | Fin Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Advanced Thermal Solutions Inc. | Top Mount | Angled Fins Square | 0.689 in | 17.5 mm | 1.772 " | 45 mm | 1.6 °C/W 200 LFM | Blue Anodized | 45 mm | 1.772 in | BGA | Clip Thermal Material | Aluminum | |||||||
Advanced Thermal Solutions Inc. | Top Mount | Angled Fins Square | 0.295 in | 7.5 mm | 1.378 in | 5.3 °C/W 200 LFM | Blue Anodized | 35 mm | 1.378 in | BGA | Clip Thermal Material | Aluminum | 35 mm | |||||||
Advanced Thermal Solutions Inc. | Top Mount | Angled Fins Square | 0.295 in | 7.5 mm | 1.142 in | 7.4 °C/W | Blue Anodized | 1.142 in | BGA | Clip | Aluminum | 29 mm | 29 mm | |||||||
Advanced Thermal Solutions Inc. | Top Mount | Angled Fins Square | 0.689 in | 17.5 mm | 2 °C/W 200 LFM | Blue Anodized | 1.575 in | BGA | Clip Thermal Material | Aluminum | 40 mm | |||||||||
Advanced Thermal Solutions Inc. | Top Mount | Angled Fins Square | 0.689 in | 17.5 mm | 42.5 mm | 1.9 °C/W | Blue Anodized | BGA | Clip Thermal Material | Aluminum | 1.673 in | |||||||||
Advanced Thermal Solutions Inc. | Top Mount | Angled Fins Square | 0.689 in | 17.5 mm | 0.9 in | 5.1 °C/W | Blue Anodized | BGA | Clip Thermal Material | Aluminum | 23 mm | 0.906 in | 23.01 mm | |||||||
Advanced Thermal Solutions Inc. | Top Mount | Angled Fins Square | 0.689 in | 17.5 mm | 37.5 mm | 2.1 °C/W 200 LFM | Blue Anodized | BGA | Clip Thermal Material | Aluminum | 1.476 in | 1.476 in | 37.5 mm | |||||||
Advanced Thermal Solutions Inc. | Top Mount | Angled Fins Square | 0.689 in | 17.5 mm | 1.378 in | 2.3 °C/W | Blue Anodized | 35 mm | 1.378 in | BGA | Clip Thermal Material | Aluminum | 35 mm | |||||||
Advanced Thermal Solutions Inc. | Top Mount | Angled Fins Square | 37.5 mm | 2.8 °C/W 200 LFM | Blue Anodized | BGA | Clip Thermal Material | Aluminum | 1.476 in | 1.476 in | 37.5 mm | 12.5 mm | 0.492 in | |||||||
Advanced Thermal Solutions Inc. | Top Mount | Angled Fins Square | 0.295 in | 7.5 mm | 30.99 mm | 6.9 °C/W 200 LFM | Blue Anodized | BGA | Clip | Aluminum | 1.22 in |
