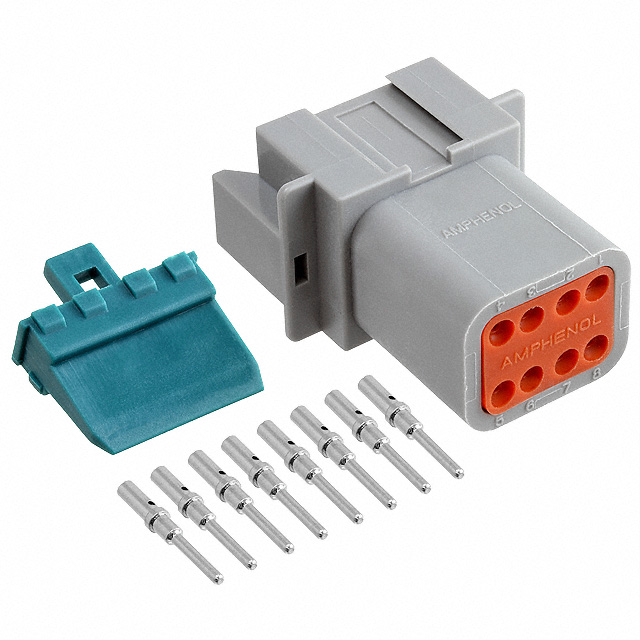

AT04-08PA-KIT01

Active

Amphenol Sine Systems Corp

CONN RCPT 8POS CRIMP 16-18AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AT Series

AT04-08PA-KIT01

Active

Amphenol Sine Systems Corp

CONN RCPT 8POS CRIMP 16-18AWG

Deep-Dive with AI

DocumentsDatasheet AT Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-08PA-KIT01

Cable Termination	Crimp
Color	Gray
Connector Type	Receptacle
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Wedge Lock
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Number of Rows	2
Wire Gauge [Max]	18 AWG
Wire Gauge [Min]	16 AWG
Wire Type	Discrete

AT04-08PA Series

Part	Fastening Type	Connector Type	Features	Mounting Type	Note	Number of Rows	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Color	Contact Type	Number of Positions	Wire Gauge [Min]	Wire Gauge [Max]	Cable Termination	Wire Type
Amphenol Sine Systems Corp AT04-08PA-SR2GR	Latch Holder	Receptacle	Cap (Cover) Sealed Strain Relief	Free Hanging (In-Line)	Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Gray	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-PM13	Latch Holder	Receptacle	Cap (Cover) Mounting Flange Sealed		Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Gray	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA	Latch Holder	Receptacle		Free Hanging (In-Line)	Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Gray	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-BLK	Latch Holder	Receptacle		Free Hanging (In-Line)	Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Black	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-KIT01	Latch Holder	Receptacle	Wedge Lock	Free Hanging (In-Line)		2					Gray	Male Pin	8	16 AWG	18 AWG	Crimp	Discrete
Amphenol Sine Systems Corp AT04-08PA-CL03	Latch Holder	Receptacle	Mounting Flange Sealed		Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Gray	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-LE11	Latch Holder	Receptacle	Cap (Cover) Mounting Flange Sealed		Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Black	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-PM05	Latch Holder	Receptacle	Mounting Flange Sealed		Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Gray	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-MMBLK	Latch Holder	Receptacle		Free Hanging (In-Line)	Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Black	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-CL06	Latch Holder	Receptacle	Mounting Flange Sealed		Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Black	Male Pin	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.44
		10	$ 8.01
		25	$ 7.23
		50	$ 6.71
		100	$ 6.23
		250	$ 5.67
		500	$ 5.29
		1000	$ 4.95

Description

General part information

AT04-08PA Series

8 Position Rectangular Receptacle Connector Crimp 16-18 AWG

Documents

Technical documentation and resources

Datasheet

AT Series

Datasheet
