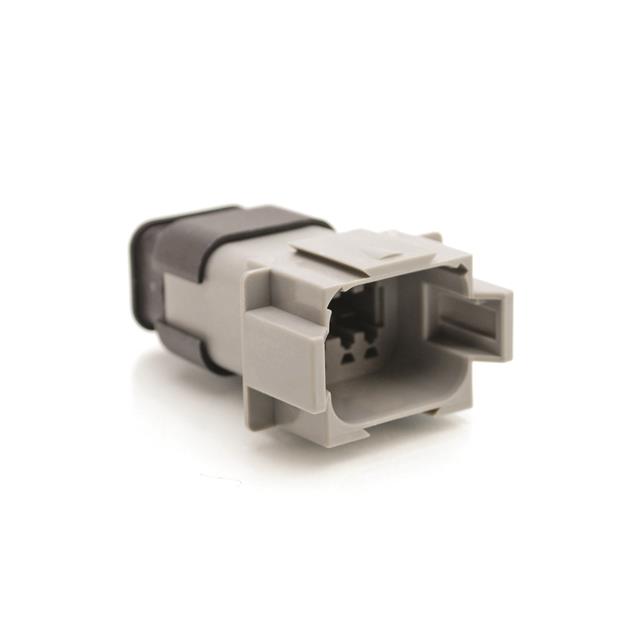

AT04-08PA-SR2GR

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 8POS 14-20AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AT Series +1

AT04-08PA-SR2GR

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 8POS 14-20AWG

Deep-Dive with AI

DocumentsDatasheet AT Series +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-08PA-SR2GR

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Sealed, Strain Relief, Cap (Cover)
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT04-08PA Series

Part	Fastening Type	Connector Type	Features	Mounting Type	Note	Number of Rows	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Color	Contact Type	Number of Positions	Wire Gauge [Min]	Wire Gauge [Max]	Cable Termination	Wire Type
Amphenol Sine Systems Corp AT04-08PA-SR2GR	Latch Holder	Receptacle	Cap (Cover) Sealed Strain Relief	Free Hanging (In-Line)	Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Gray	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-PM13	Latch Holder	Receptacle	Cap (Cover) Mounting Flange Sealed		Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Gray	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA	Latch Holder	Receptacle		Free Hanging (In-Line)	Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Gray	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-BLK	Latch Holder	Receptacle		Free Hanging (In-Line)	Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Black	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-KIT01	Latch Holder	Receptacle	Wedge Lock	Free Hanging (In-Line)		2					Gray	Male Pin	8	16 AWG	18 AWG	Crimp	Discrete
Amphenol Sine Systems Corp AT04-08PA-CL03	Latch Holder	Receptacle	Mounting Flange Sealed		Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Gray	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-LE11	Latch Holder	Receptacle	Cap (Cover) Mounting Flange Sealed		Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Black	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-PM05	Latch Holder	Receptacle	Mounting Flange Sealed		Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Gray	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-MMBLK	Latch Holder	Receptacle		Free Hanging (In-Line)	Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Black	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-CL06	Latch Holder	Receptacle	Mounting Flange Sealed		Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Black	Male Pin	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	150	$ 3.58

Description

General part information

AT04-08PA Series

8 Rectangular Connectors - Housings Receptacle Gray

Documents

Technical documentation and resources

Datasheet

AT Series

Datasheet

Dura|Mate™ Family Brochure

Datasheet
