Technical Specifications
Parameters and characteristics for this part
| Specification | AT04-08PA-BLK |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
AT04-08PA Series
| Part | Fastening Type | Connector Type | Features | Mounting Type | Note | Number of Rows | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Color | Contact Type | Number of Positions | Wire Gauge [Min] | Wire Gauge [Max] | Cable Termination | Wire Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Latch Holder | Receptacle | Cap (Cover) Sealed Strain Relief | Free Hanging (In-Line) | Contacts Not Included | 2 | Crimp | -55 °C | 125 °C | Thermoplastic | Gray | Male Pin | 8 | ||||
Amphenol Sine Systems Corp | Latch Holder | Receptacle | Cap (Cover) Mounting Flange Sealed | Contacts Not Included | 2 | Crimp | -55 °C | 125 °C | Thermoplastic | Gray | Male Pin | 8 | |||||
Amphenol Sine Systems Corp | Latch Holder | Receptacle | Free Hanging (In-Line) | Contacts Not Included | 2 | Crimp | -55 °C | 125 °C | Thermoplastic | Gray | Male Pin | 8 | |||||
Amphenol Sine Systems Corp | Latch Holder | Receptacle | Free Hanging (In-Line) | Contacts Not Included | 2 | Crimp | -55 °C | 125 °C | Thermoplastic | Black | Male Pin | 8 | |||||
Amphenol Sine Systems Corp | Latch Holder | Receptacle | Wedge Lock | Free Hanging (In-Line) | 2 | Gray | Male Pin | 8 | 16 AWG | 18 AWG | Crimp | Discrete | |||||
Amphenol Sine Systems Corp | Latch Holder | Receptacle | Mounting Flange Sealed | Contacts Not Included | 2 | Crimp | -55 °C | 125 °C | Thermoplastic | Gray | Male Pin | 8 | |||||
Amphenol Sine Systems Corp | Latch Holder | Receptacle | Cap (Cover) Mounting Flange Sealed | Contacts Not Included | 2 | Crimp | -55 °C | 125 °C | Thermoplastic | Black | Male Pin | 8 | |||||
Amphenol Sine Systems Corp | Latch Holder | Receptacle | Mounting Flange Sealed | Contacts Not Included | 2 | Crimp | -55 °C | 125 °C | Thermoplastic | Gray | Male Pin | 8 | |||||
Amphenol Sine Systems Corp | Latch Holder | Receptacle | Free Hanging (In-Line) | Contacts Not Included | 2 | Crimp | -55 °C | 125 °C | Thermoplastic | Black | Male Pin | 8 | |||||
Amphenol Sine Systems Corp | Latch Holder | Receptacle | Mounting Flange Sealed | Contacts Not Included | 2 | Crimp | -55 °C | 125 °C | Thermoplastic | Black | Male Pin | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.18 | |
| 10 | $ 2.89 | |||
| 25 | $ 2.74 | |||
| 50 | $ 2.67 | |||
| 100 | $ 2.55 | |||
| 270 | $ 2.23 | |||
| 540 | $ 2.16 | |||
| 1080 | $ 1.85 | |||
| 2700 | $ 1.72 | |||
Description
General part information
AT04-08PA Series

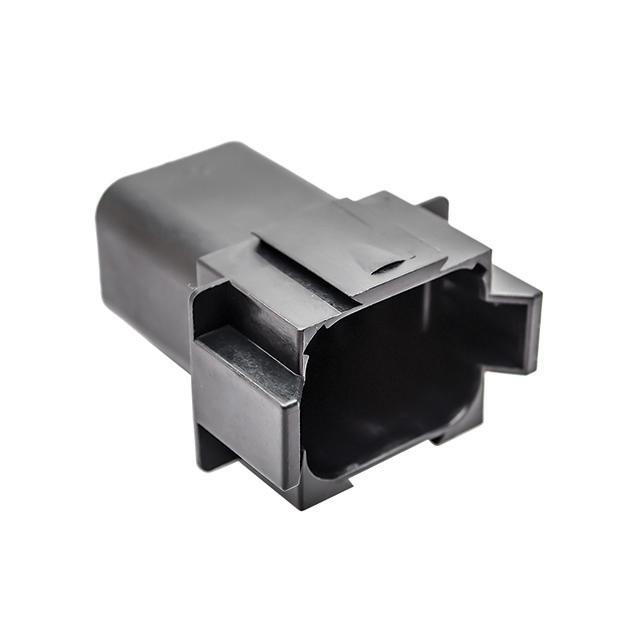

8 Rectangular Connectors - Housings Receptacle Black
