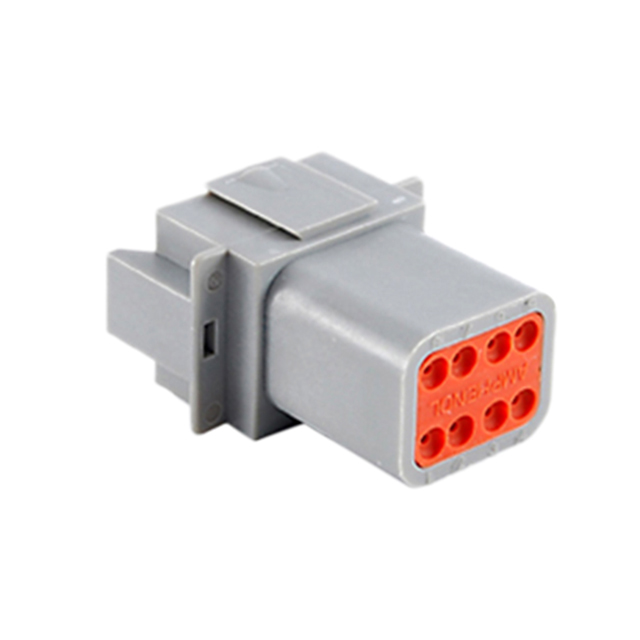

AT04-08PA

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 8POS 14-20AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AT Series +1

AT04-08PA

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 8POS 14-20AWG

Deep-Dive with AI

DocumentsDatasheet AT Series +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-08PA

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT04-08PA Series

Part	Fastening Type	Connector Type	Features	Mounting Type	Note	Number of Rows	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Color	Contact Type	Number of Positions	Wire Gauge [Min]	Wire Gauge [Max]	Cable Termination	Wire Type
Amphenol Sine Systems Corp AT04-08PA-SR2GR	Latch Holder	Receptacle	Cap (Cover) Sealed Strain Relief	Free Hanging (In-Line)	Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Gray	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-PM13	Latch Holder	Receptacle	Cap (Cover) Mounting Flange Sealed		Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Gray	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA	Latch Holder	Receptacle		Free Hanging (In-Line)	Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Gray	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-BLK	Latch Holder	Receptacle		Free Hanging (In-Line)	Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Black	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-KIT01	Latch Holder	Receptacle	Wedge Lock	Free Hanging (In-Line)		2					Gray	Male Pin	8	16 AWG	18 AWG	Crimp	Discrete
Amphenol Sine Systems Corp AT04-08PA-CL03	Latch Holder	Receptacle	Mounting Flange Sealed		Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Gray	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-LE11	Latch Holder	Receptacle	Cap (Cover) Mounting Flange Sealed		Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Black	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-PM05	Latch Holder	Receptacle	Mounting Flange Sealed		Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Gray	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-MMBLK	Latch Holder	Receptacle		Free Hanging (In-Line)	Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Black	Male Pin	8
Amphenol Sine Systems Corp AT04-08PA-CL06	Latch Holder	Receptacle	Mounting Flange Sealed		Contacts Not Included	2	Crimp	-55 °C	125 °C	Thermoplastic	Black	Male Pin	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.48
		10	$ 2.16
		25	$ 2.07
		50	$ 2.02
		100	$ 1.93
		250	$ 1.75
		500	$ 1.61
		1000	$ 1.38
		2500	$ 1.29

Description

General part information

AT04-08PA Series

8 Rectangular Connectors - Housings Receptacle Gray

Documents

Technical documentation and resources

Datasheet

AT Series

Datasheet

A Series Family

Datasheet
