PX0412/08P - PX0412/08P

PX0412/08P

Active
BULGIN LIMITED

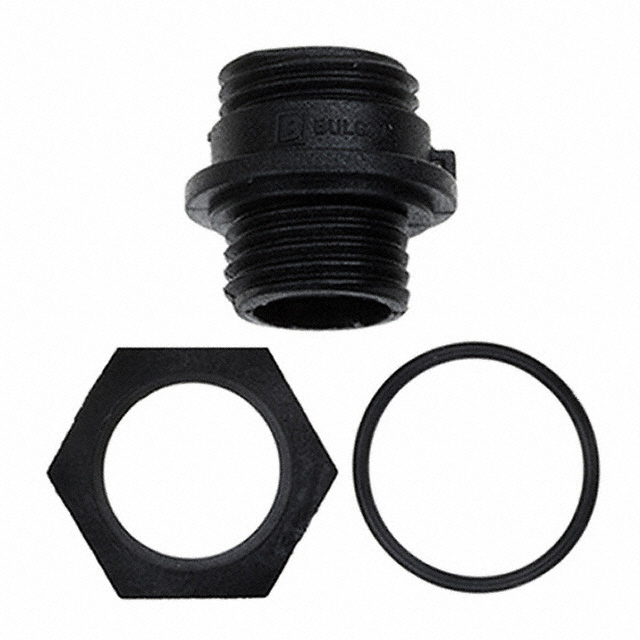

CIRCULAR CONNECTOR, RECEPTACLE, 8 POSITION, PANEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
PX0412/08P - PX0412/08P

PX0412/08P

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, RECEPTACLE, 8 POSITION, PANEL

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationPX0412/08P
Connector TypeReceptacle Housing
Contact ShapeCircular
Contact TypeCrimp and Solder Cup
FeaturesUV Resistant
Housing ColorBlack
Ingress ProtectionIP68 - Dust Tight, Waterproof
Material Flammability RatingUL94 V-0
Mounting FeatureBulkhead - Rear Side Nut
NoteContacts Not Included
Number of Positions8
Operating Temperature [Max]80 C
Operating Temperature [Min]-40 °C
OrientationKeyed
ShieldingUnshielded
TypeFor Male Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 11.69
10$ 10.36
25$ 9.96
50$ 9.56
100$ 9.03
300$ 8.23
500$ 7.70
1000$ 7.07
NewarkEach 1$ 13.10
10$ 12.56
25$ 11.47
50$ 10.92
100$ 10.38
250$ 9.28
500$ 8.74
1000$ 7.65

Description

General part information

PX0412 Series

8 (Power) Position Circular Connector Receptacle Housing Panel Mount UV Resistant
