PX0412/06S

Active

BULGIN LIMITED

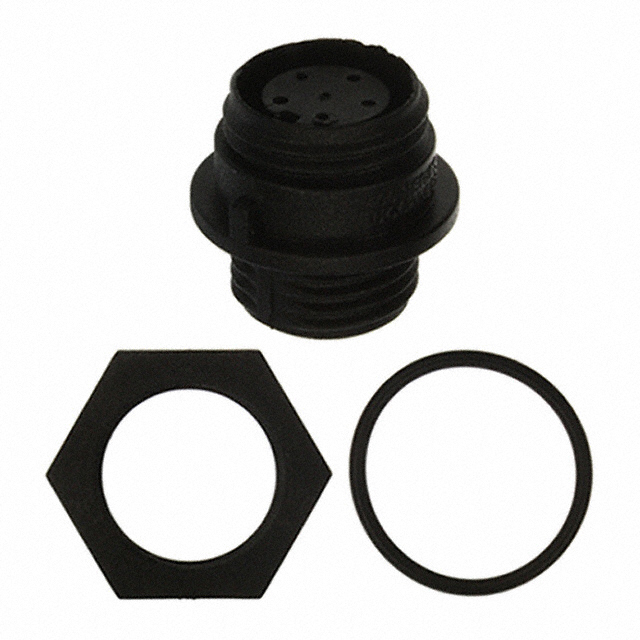

CIRCULAR CONNECTOR, IP68, FRONT MOUNT, BUCCANEER 400 SERIES, PANEL MOUNT RECEPTACLE, 6 CONTACTS

Search across all available documentation for this part.

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, IP68, FRONT MOUNT, BUCCANEER 400 SERIES, PANEL MOUNT RECEPTACLE, 6 CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	PX0412/06S

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Features	UV Resistant
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shielding	Unshielded
Type	For Female Sockets

Part	Mounting Feature	Ingress Protection	Note	Contact Shape	Shielding	Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Features	Connector Type	Contact Type	Material Flammability Rating	Housing Color	Number of Positions	Primary Material
BULGIN LIMITED PX0412/08P	Bulkhead - Rear Side Nut	IP68 - Dust Tight Waterproof	Contacts Not Included	Circular	Unshielded	For Male Pins	-40 °C	80 C	Keyed	UV Resistant	Receptacle Housing	Crimp and Solder Cup	UL94 V-0	Black	8
BULGIN LIMITED PX0412/06S	Bulkhead - Rear Side Nut	IP68 - Dust Tight Waterproof	Contacts Not Included	Circular	Unshielded	For Female Sockets	-40 °C	80 C	Keyed	UV Resistant	Receptacle Housing	Crimp and Solder Cup	UL94 V-0	Black	6
BULGIN LIMITED PX0412/08S	Bulkhead - Rear Side Nut	IP68 - Dust Tight Waterproof	Contacts Not Included	Circular	Unshielded	For Female Sockets	-40 °C	80 C	Keyed	UV Resistant	Receptacle Housing	Crimp and Solder Cup	UL94 V-0	Black	8
BULGIN LIMITED PX0412/12P	Bulkhead - Rear Side Nut	IP68 - Dust Tight Waterproof	Contacts Not Included	Circular	Unshielded	For Male Pins	-40 °C	80 C	Keyed	UV Resistant	Receptacle Housing	Crimp and Solder Cup	UL94 V-0	Black	12	Plastic
BULGIN LIMITED PX0412/03P	Bulkhead - Rear Side Nut	IP68 - Dust Tight Waterproof	Contacts Not Included	Circular	Unshielded	For Male Pins	-40 °C	80 C	Keyed	UV Resistant	Receptacle Housing	Crimp and Solder Cup	UL94 V-0	Black	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (Power) Position Circular Connector Receptacle Housing Panel Mount UV Resistant
