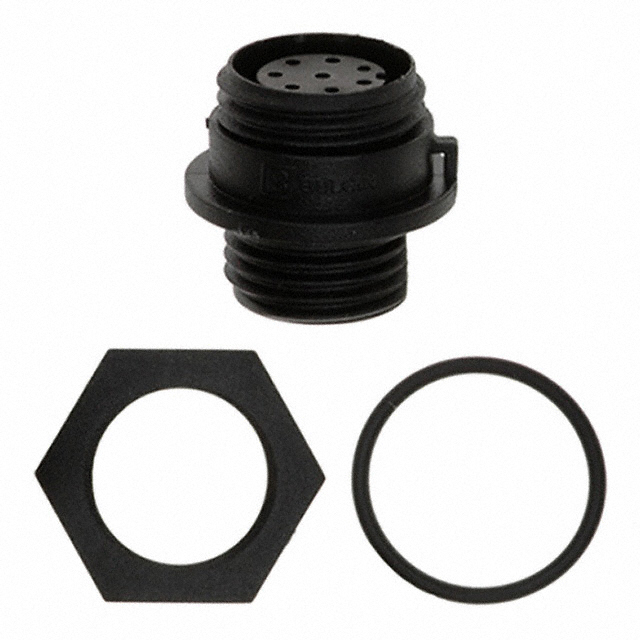

PX0412/08S
ActiveBULGIN LIMITED
CONN RCPT HSG FMALE 8POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PX0412/08S
ActiveBULGIN LIMITED
CONN RCPT HSG FMALE 8POS PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0412/08S |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Type | Crimp and Solder Cup |
| Features | UV Resistant |
| Housing Color | Black |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.22 | |
| 10 | $ 7.28 | |||
| 25 | $ 7.00 | |||
| 50 | $ 6.72 | |||
| 100 | $ 6.58 | |||
Description
General part information
PX0412 Series
8 (Power) Position Circular Connector Receptacle Housing Panel Mount UV Resistant
