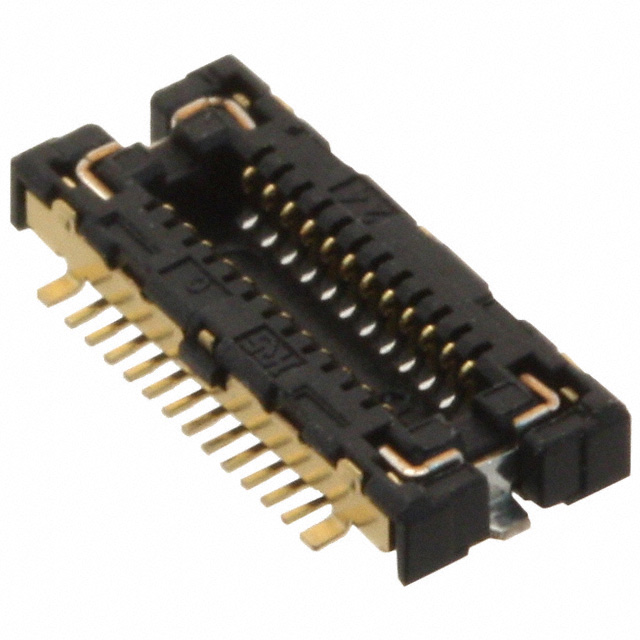

FX12B-24P-0.4SV
ActiveHirose Electric USA, Inc.
BOARD TO BOARD & MEZZANINE CONNECTORS PL 24 POS 0.4MM SOLDER ST SMD T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FX12B-24P-0.4SV
ActiveHirose Electric USA, Inc.
BOARD TO BOARD & MEZZANINE CONNECTORS PL 24 POS 0.4MM SOLDER ST SMD T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FX12B-24P-0.4SV |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board [z] | 0.053 in |
| Height Above Board [z] | 1.35 mm |
| Mated Stacking Heights | 1.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.47 | |
| 10 | $ 1.28 | |||
| 25 | $ 1.23 | |||
| 50 | $ 1.20 | |||
| 100 | $ 1.15 | |||
| 250 | $ 1.04 | |||
| 500 | $ 0.95 | |||
| 1000 | $ 0.82 | |||
| Digi-Reel® | 1 | $ 1.47 | ||
| 10 | $ 1.28 | |||
| 25 | $ 1.23 | |||
| 50 | $ 1.20 | |||
| 100 | $ 1.15 | |||
| 250 | $ 1.04 | |||
| 500 | $ 0.95 | |||
| 1000 | $ 0.82 | |||
| Tape & Reel (TR) | 3000 | $ 0.76 | ||
| 6000 | $ 0.73 | |||
| 9000 | $ 0.71 | |||
Description
General part information
FX12B Series
24 Position Connector Plug, Center Strip Contacts Surface Mount Gold
