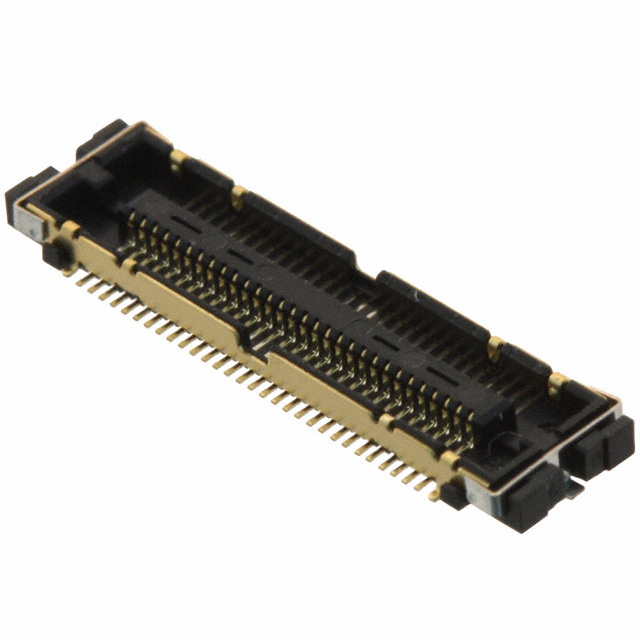

FX12B-60P-0.4SV

Active

Hirose Electric USA, Inc.

CONN PLUG 60POS SMD GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN PLUG 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Mated Stacking Heights	Number of Positions	Height Above Board [z]	Height Above Board [z]	Number of Rows	Features	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Contact Finish	Connector Type
Hirose Electric USA, Inc. FX12B-60P-0.4SV(11)
Hirose Electric USA, Inc. FX12B-40P-0.4SV(30)	Surface Mount	1.5 mm	40	0.053 in	1.35 mm	2	Solder Retention	0.016 in	0.4 mm
Hirose Electric USA, Inc. FX12B-60S-0.4SV	Surface Mount	1.5 mm	60			2	Solder Retention	0.016 in	0.4 mm	4 Áin	0.1 Ám	0.047 "	1.2 mm	Gold	Receptacle Outer Shroud Contacts
Hirose Electric USA, Inc. FX12B-24P-0.4SV	Surface Mount	1.5 mm	24	0.053 in	1.35 mm	2	Solder Retention	0.016 in	0.4 mm	4 Áin	0.1 Ám			Gold
Hirose Electric USA, Inc. FX12B-40S-0.4SV	Surface Mount	1.5 mm	40			2	Solder Retention	0.016 in	0.4 mm	4 Áin	0.1 Ám	0.047 "	1.2 mm	Gold	Receptacle Outer Shroud Contacts
Hirose Electric USA, Inc. FX12B-24S-0.4SV(30)	Surface Mount	1.5 mm	24			2	Solder Retention	0.016 in	0.4 mm			0.047 "	1.2 mm		Receptacle Outer Shroud Contacts
Hirose Electric USA, Inc. FX12B-40P-0.4SV	Surface Mount	1.5 mm	40	0.053 in	1.35 mm	2	Solder Retention	0.016 in	0.4 mm	4 Áin	0.1 Ám			Gold
Hirose Electric USA, Inc. FX12B-40P-0.4SV(22)
Hirose Electric USA, Inc. FX12B-60P-0.4SV	Surface Mount	1.5 mm	60	0.053 in	1.35 mm	2	Solder Retention	0.016 in	0.4 mm	4 Áin	0.1 Ám			Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Connector Plug, Center Strip Contacts Surface Mount Gold
