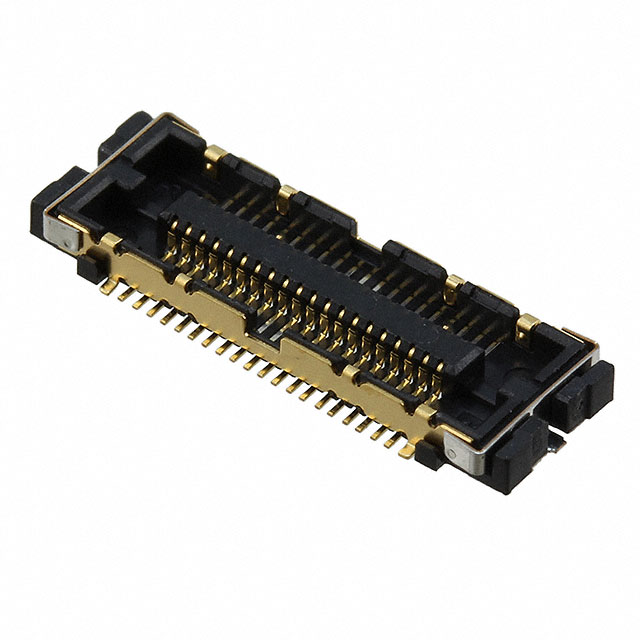

FX12B-40P-0.4SV(30)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG 40POS SMD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG 40POS SMD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Mated Stacking Heights	Number of Positions	Height Above Board [z]	Height Above Board [z]	Number of Rows	Features	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Contact Finish	Connector Type
Hirose Electric USA, Inc. FX12B-60P-0.4SV(11)
Hirose Electric USA, Inc. FX12B-40P-0.4SV(30)	Surface Mount	1.5 mm	40	0.053 in	1.35 mm	2	Solder Retention	0.016 in	0.4 mm
Hirose Electric USA, Inc. FX12B-60S-0.4SV	Surface Mount	1.5 mm	60			2	Solder Retention	0.016 in	0.4 mm	4 Áin	0.1 Ám	0.047 "	1.2 mm	Gold	Receptacle Outer Shroud Contacts
Hirose Electric USA, Inc. FX12B-24P-0.4SV	Surface Mount	1.5 mm	24	0.053 in	1.35 mm	2	Solder Retention	0.016 in	0.4 mm	4 Áin	0.1 Ám			Gold
Hirose Electric USA, Inc. FX12B-40S-0.4SV	Surface Mount	1.5 mm	40			2	Solder Retention	0.016 in	0.4 mm	4 Áin	0.1 Ám	0.047 "	1.2 mm	Gold	Receptacle Outer Shroud Contacts
Hirose Electric USA, Inc. FX12B-24S-0.4SV(30)	Surface Mount	1.5 mm	24			2	Solder Retention	0.016 in	0.4 mm			0.047 "	1.2 mm		Receptacle Outer Shroud Contacts
Hirose Electric USA, Inc. FX12B-40P-0.4SV	Surface Mount	1.5 mm	40	0.053 in	1.35 mm	2	Solder Retention	0.016 in	0.4 mm	4 Áin	0.1 Ám			Gold
Hirose Electric USA, Inc. FX12B-40P-0.4SV(22)
Hirose Electric USA, Inc. FX12B-60P-0.4SV	Surface Mount	1.5 mm	60	0.053 in	1.35 mm	2	Solder Retention	0.016 in	0.4 mm	4 Áin	0.1 Ám			Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 Position Connector Plug, Center Strip Contacts Surface Mount
