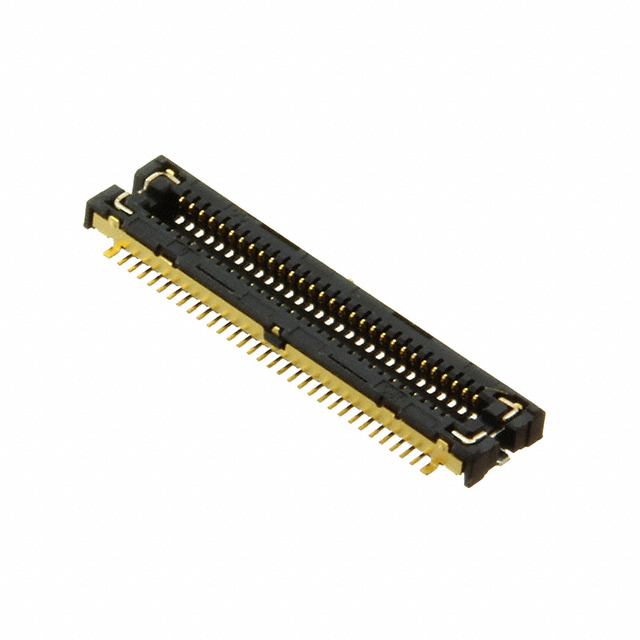

FX12B-60S-0.4SV
ActiveHirose Electric USA, Inc.
CONN RCPT 60POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FX12B-60S-0.4SV
ActiveHirose Electric USA, Inc.
CONN RCPT 60POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FX12B-60S-0.4SV |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board | 0.047 " |
| Height Above Board | 1.2 mm |
| Mated Stacking Heights | 1.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.29 | |
| 10 | $ 1.99 | |||
| 25 | $ 1.91 | |||
| 50 | $ 1.87 | |||
| 100 | $ 1.78 | |||
| 250 | $ 1.61 | |||
| 500 | $ 1.48 | |||
| 1000 | $ 1.27 | |||
| Digi-Reel® | 1 | $ 2.29 | ||
| 10 | $ 1.99 | |||
| 25 | $ 1.91 | |||
| 50 | $ 1.87 | |||
| 100 | $ 1.78 | |||
| 250 | $ 1.61 | |||
| 500 | $ 1.48 | |||
| 1000 | $ 1.27 | |||
| Tape & Reel (TR) | 3000 | $ 1.02 | ||
| 6000 | $ 0.96 | |||
| 9000 | $ 0.94 | |||
Description
General part information
FX12B Series
60 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
