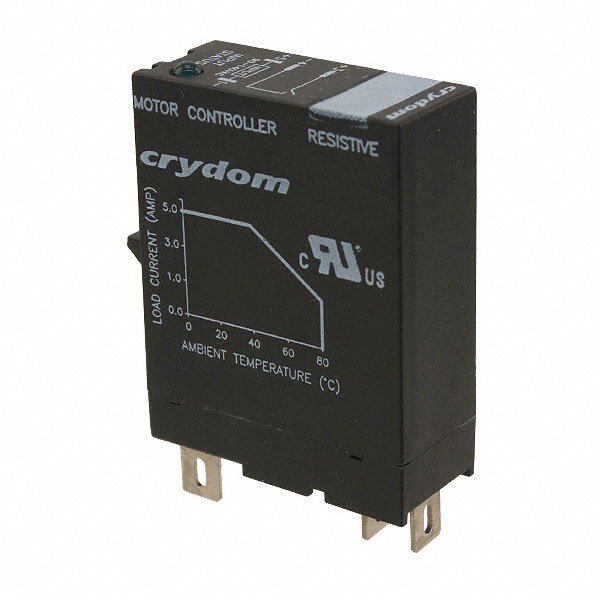

ED10C5

Active

Sensata-Crydom

SSR RELAY SPST-NO 5A 1-80V

Deep-Dive with AI

DocumentsCE Declaration of Conformity ED Series Install Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ED10C5

Approval Agency	cURus, CE, IEC
Load Current	5 A
Mounting Type	Socketable
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Output Type	DC
Package / Case	Module
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)
Voltage - Input [Max]	32 V
Voltage - Input [Min]	18 V
Voltage - Load [Max]	80 V
Voltage - Load [Min]	1 V

- Series

Part	Voltage - Input [Max]	Voltage - Input [Min]	Load Current	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Mounting Type	Approval Agency	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Package / Case	Supplier Device Package	On-State Resistance (Max) [Max]
Sensata-Crydom D2402	32 V	3 V	2 A	-40 °C	80 C	AC Zero Cross	Chassis Mount	CE CSA TUV UL	24 V	280 V	Screw Terminal	Hockey Puck
Sensata-Crydom UPD2415	32 V	3 V	15 A	-40 °C	80 C	AC Zero Cross	Through Hole	CE cURus	24 V	280 V	PC Pin	6-SIP	6-SIP
Sensata-Crydom ED24F5	72 V	48 VDC	5 A	-30 ░C	80 C	AC Zero Cross	Socketable	CE cURus IEC	24 V	280 V	Plug In Quick Connect - 0.187" (4.7mm)	Module
Sensata-Crydom CWU4850	48 V 280 VAC/DC	20 VAC/DC 20 VDC	50 A	-40 °C	80 C	AC Zero Cross	Chassis Mount	CE CSA cURus TUV	48 V	660 V	Screw Terminal	Hockey Puck
Sensata-Crydom ED24B5	140 VAC	90 VAC	5 A	-30 ░C	80 C	AC Zero Cross	Socketable	CE cURus IEC	24 V	280 V	Plug In Quick Connect - 0.187" (4.7mm)	Module
Sensata-Crydom S218	8 VDC	3.5 V	8 A	-30 ░C	80 C	AC Zero Cross	Chassis Mount	CE CSA UL	20 V	140 V	Quick Connect - 0.187" (4.7mm)	Module
Sensata-Crydom ED10C5	32 V	18 V	5 A	-30 ░C	80 C	DC	Socketable	CE cURus IEC	1 V	80 V	Plug In Quick Connect - 0.187" (4.7mm)	Module
Sensata-Crydom D1210	32 V	3 V	10 A	-40 °C	80 C	AC Zero Cross	Chassis Mount	CE CSA TUV UL	24 V	140 V	Screw Terminal	Hockey Puck
Sensata-Crydom D1D07	32 V	3.5 V	7 A	-40 °C	100 °C	DC	Chassis Mount	CE cURus	1 V	100 V	Screw Terminal	Hockey Puck		290 mOhms
Sensata-Crydom HA6050	280 VAC/DC	90 VAC	50 A	-40 °C	80 C	AC Zero Cross	Chassis Mount	CE CSA cURus TUV	48 V	660 V	Screw Terminal	Hockey Puck

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.33
		10	$ 26.03
		50	$ 24.85
		100	$ 24.12

Description

General part information

- Series

Solid State SPST-NO (1 Form A) Module

Documents

Technical documentation and resources

CE Declaration of Conformity

ED Series Install Sheet

Datasheet
