UPD2415

Active

Sensata-Crydom

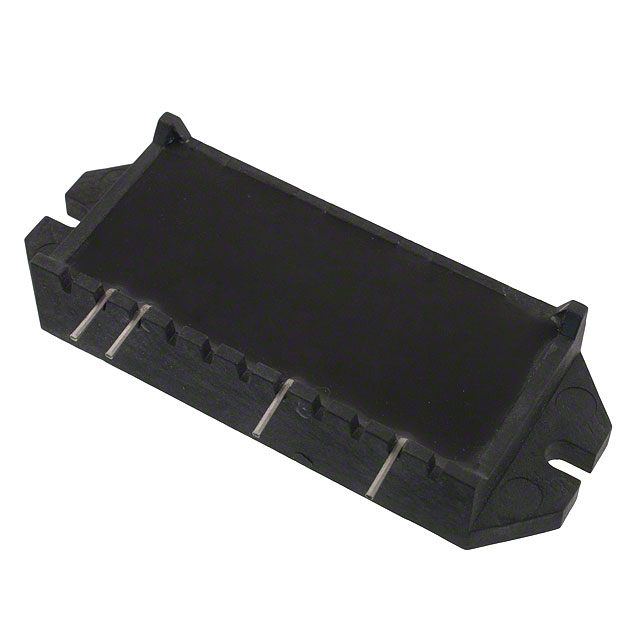

SSR RELAY SPST-NO 15A 24-280V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCE Declaration of Conformity

UPD2415

Active

Sensata-Crydom

SSR RELAY SPST-NO 15A 24-280V

Deep-Dive with AI

DocumentsCE Declaration of Conformity

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UPD2415

Approval Agency	CE, cURus
Load Current	15 A
Mounting Type	Through Hole
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Type	AC, Zero Cross
Package / Case	6-SIP
Supplier Device Package	6-SIP
Termination Style	PC Pin
Voltage - Input [Max]	32 V
Voltage - Input [Min]	3 V
Voltage - Load [Max]	280 V
Voltage - Load [Min]	24 V

- Series

Part	Voltage - Input [Max]	Voltage - Input [Min]	Load Current	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Mounting Type	Approval Agency	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Package / Case	Supplier Device Package	On-State Resistance (Max) [Max]
Sensata-Crydom D2402	32 V	3 V	2 A	-40 °C	80 C	AC Zero Cross	Chassis Mount	CE CSA TUV UL	24 V	280 V	Screw Terminal	Hockey Puck
Sensata-Crydom UPD2415	32 V	3 V	15 A	-40 °C	80 C	AC Zero Cross	Through Hole	CE cURus	24 V	280 V	PC Pin	6-SIP	6-SIP
Sensata-Crydom ED24F5	72 V	48 VDC	5 A	-30 ░C	80 C	AC Zero Cross	Socketable	CE cURus IEC	24 V	280 V	Plug In Quick Connect - 0.187" (4.7mm)	Module
Sensata-Crydom CWU4850	48 V 280 VAC/DC	20 VAC/DC 20 VDC	50 A	-40 °C	80 C	AC Zero Cross	Chassis Mount	CE CSA cURus TUV	48 V	660 V	Screw Terminal	Hockey Puck
Sensata-Crydom ED24B5	140 VAC	90 VAC	5 A	-30 ░C	80 C	AC Zero Cross	Socketable	CE cURus IEC	24 V	280 V	Plug In Quick Connect - 0.187" (4.7mm)	Module
Sensata-Crydom S218	8 VDC	3.5 V	8 A	-30 ░C	80 C	AC Zero Cross	Chassis Mount	CE CSA UL	20 V	140 V	Quick Connect - 0.187" (4.7mm)	Module
Sensata-Crydom ED10C5	32 V	18 V	5 A	-30 ░C	80 C	DC	Socketable	CE cURus IEC	1 V	80 V	Plug In Quick Connect - 0.187" (4.7mm)	Module
Sensata-Crydom D1210	32 V	3 V	10 A	-40 °C	80 C	AC Zero Cross	Chassis Mount	CE CSA TUV UL	24 V	140 V	Screw Terminal	Hockey Puck
Sensata-Crydom D1D07	32 V	3.5 V	7 A	-40 °C	100 °C	DC	Chassis Mount	CE cURus	1 V	100 V	Screw Terminal	Hockey Puck		290 mOhms
Sensata-Crydom HA6050	280 VAC/DC	90 VAC	50 A	-40 °C	80 C	AC Zero Cross	Chassis Mount	CE CSA cURus TUV	48 V	660 V	Screw Terminal	Hockey Puck

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.72
		10	$ 54.02
		50	$ 51.56
		100	$ 50.04

Description

General part information

- Series

Solid State SPST-NO (1 Form A) 6-SIP
