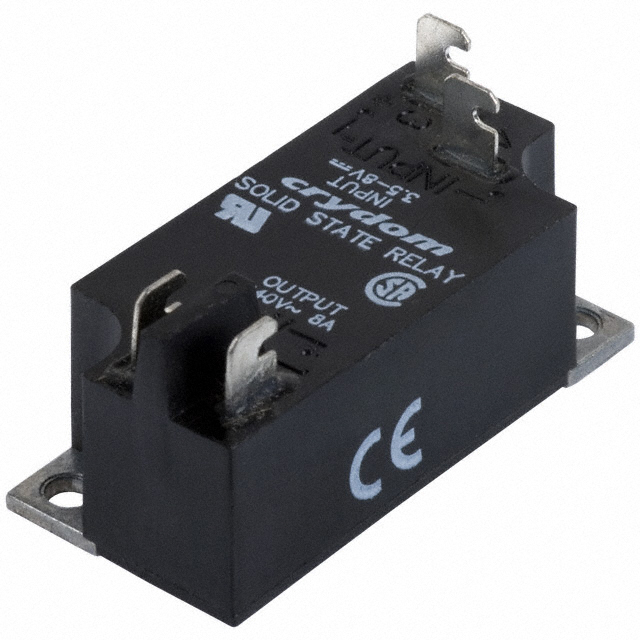

S218

Obsolete

Sensata-Crydom

SSR RELAY SPST-NO 8A 20-140V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCE Declaration of Conformity Datasheet

S218

Obsolete

Sensata-Crydom

SSR RELAY SPST-NO 8A 20-140V

Deep-Dive with AI

DocumentsCE Declaration of Conformity Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S218

Approval Agency	UL, CSA, CE
Load Current	8 A
Mounting Type	Chassis Mount
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Output Type	AC, Zero Cross
Package / Case	Module
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage - Input [Max]	8 VDC
Voltage - Input [Min]	3.5 V
Voltage - Load [Max]	140 V
Voltage - Load [Min]	20 V

- Series

Part	Voltage - Input [Max]	Voltage - Input [Min]	Load Current	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Mounting Type	Approval Agency	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Package / Case	Supplier Device Package	On-State Resistance (Max) [Max]
Sensata-Crydom D2402	32 V	3 V	2 A	-40 °C	80 C	AC Zero Cross	Chassis Mount	CE CSA TUV UL	24 V	280 V	Screw Terminal	Hockey Puck
Sensata-Crydom UPD2415	32 V	3 V	15 A	-40 °C	80 C	AC Zero Cross	Through Hole	CE cURus	24 V	280 V	PC Pin	6-SIP	6-SIP
Sensata-Crydom ED24F5	72 V	48 VDC	5 A	-30 ░C	80 C	AC Zero Cross	Socketable	CE cURus IEC	24 V	280 V	Plug In Quick Connect - 0.187" (4.7mm)	Module
Sensata-Crydom CWU4850	48 V 280 VAC/DC	20 VAC/DC 20 VDC	50 A	-40 °C	80 C	AC Zero Cross	Chassis Mount	CE CSA cURus TUV	48 V	660 V	Screw Terminal	Hockey Puck
Sensata-Crydom ED24B5	140 VAC	90 VAC	5 A	-30 ░C	80 C	AC Zero Cross	Socketable	CE cURus IEC	24 V	280 V	Plug In Quick Connect - 0.187" (4.7mm)	Module
Sensata-Crydom S218	8 VDC	3.5 V	8 A	-30 ░C	80 C	AC Zero Cross	Chassis Mount	CE CSA UL	20 V	140 V	Quick Connect - 0.187" (4.7mm)	Module
Sensata-Crydom ED10C5	32 V	18 V	5 A	-30 ░C	80 C	DC	Socketable	CE cURus IEC	1 V	80 V	Plug In Quick Connect - 0.187" (4.7mm)	Module
Sensata-Crydom D1210	32 V	3 V	10 A	-40 °C	80 C	AC Zero Cross	Chassis Mount	CE CSA TUV UL	24 V	140 V	Screw Terminal	Hockey Puck
Sensata-Crydom D1D07	32 V	3.5 V	7 A	-40 °C	100 °C	DC	Chassis Mount	CE cURus	1 V	100 V	Screw Terminal	Hockey Puck		290 mOhms
Sensata-Crydom HA6050	280 VAC/DC	90 VAC	50 A	-40 °C	80 C	AC Zero Cross	Chassis Mount	CE CSA cURus TUV	48 V	660 V	Screw Terminal	Hockey Puck

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6	$ 92.55
