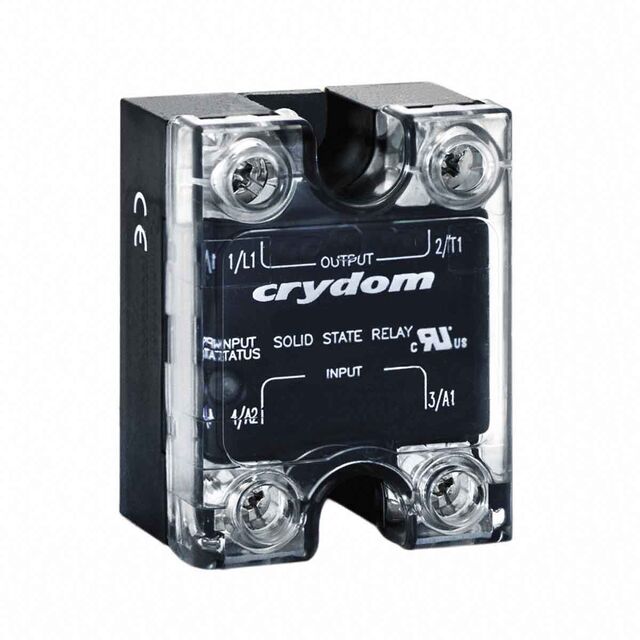

CWU4850

Active

Sensata-Crydom

SSR RELAY SPST-NO 50A 48-660V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCMX Series Datasheet CE Declaration of Conformity

CWU4850

Active

Sensata-Crydom

SSR RELAY SPST-NO 50A 48-660V

Deep-Dive with AI

DocumentsCMX Series Datasheet CE Declaration of Conformity

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWU4850

Approval Agency	CSA, TUV, cURus, CE
Load Current	50 A
Mounting Type	Chassis Mount
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Type	AC, Zero Cross
Package / Case	Hockey Puck
Termination Style	Screw Terminal
Voltage - Input [Max]	280 VAC/DC, 48 V
Voltage - Input [Min]	20 VAC/DC, 20 VDC
Voltage - Load [Max]	660 V
Voltage - Load [Min]	48 V

- Series

Part	Voltage - Input [Max]	Voltage - Input [Min]	Load Current	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Mounting Type	Approval Agency	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Package / Case	Supplier Device Package	On-State Resistance (Max) [Max]
Sensata-Crydom D2402	32 V	3 V	2 A	-40 °C	80 C	AC Zero Cross	Chassis Mount	CE CSA TUV UL	24 V	280 V	Screw Terminal	Hockey Puck
Sensata-Crydom UPD2415	32 V	3 V	15 A	-40 °C	80 C	AC Zero Cross	Through Hole	CE cURus	24 V	280 V	PC Pin	6-SIP	6-SIP
Sensata-Crydom ED24F5	72 V	48 VDC	5 A	-30 ░C	80 C	AC Zero Cross	Socketable	CE cURus IEC	24 V	280 V	Plug In Quick Connect - 0.187" (4.7mm)	Module
Sensata-Crydom CWU4850	48 V 280 VAC/DC	20 VAC/DC 20 VDC	50 A	-40 °C	80 C	AC Zero Cross	Chassis Mount	CE CSA cURus TUV	48 V	660 V	Screw Terminal	Hockey Puck
Sensata-Crydom ED24B5	140 VAC	90 VAC	5 A	-30 ░C	80 C	AC Zero Cross	Socketable	CE cURus IEC	24 V	280 V	Plug In Quick Connect - 0.187" (4.7mm)	Module
Sensata-Crydom S218	8 VDC	3.5 V	8 A	-30 ░C	80 C	AC Zero Cross	Chassis Mount	CE CSA UL	20 V	140 V	Quick Connect - 0.187" (4.7mm)	Module
Sensata-Crydom ED10C5	32 V	18 V	5 A	-30 ░C	80 C	DC	Socketable	CE cURus IEC	1 V	80 V	Plug In Quick Connect - 0.187" (4.7mm)	Module
Sensata-Crydom D1210	32 V	3 V	10 A	-40 °C	80 C	AC Zero Cross	Chassis Mount	CE CSA TUV UL	24 V	140 V	Screw Terminal	Hockey Puck
Sensata-Crydom D1D07	32 V	3.5 V	7 A	-40 °C	100 °C	DC	Chassis Mount	CE cURus	1 V	100 V	Screw Terminal	Hockey Puck		290 mOhms
Sensata-Crydom HA6050	280 VAC/DC	90 VAC	50 A	-40 °C	80 C	AC Zero Cross	Chassis Mount	CE CSA cURus TUV	48 V	660 V	Screw Terminal	Hockey Puck

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 89.68

Description

General part information

- Series

Solid State SPST-NO (1 Form A) Hockey Puck

Documents

Technical documentation and resources

CMX Series Datasheet

Datasheet
