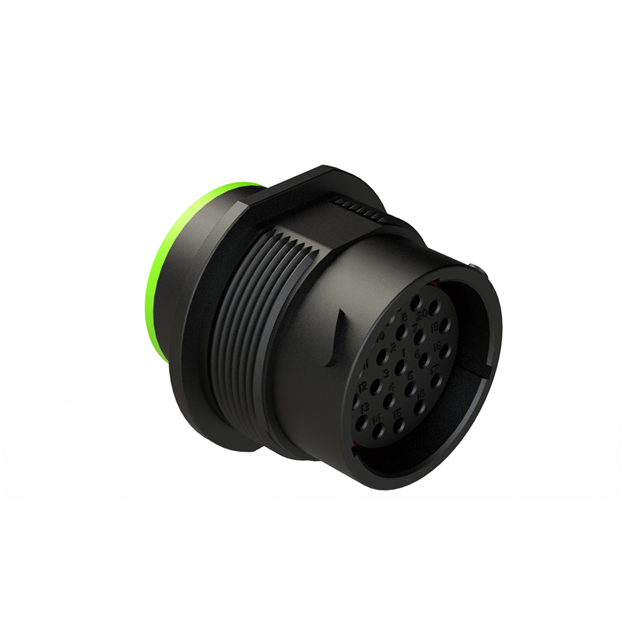

AHDP04-18-21SN-SRA
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG FMALE 21POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
AHDP04-18-21SN-SRA
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG FMALE 21POS PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHDP04-18-21SN-SRA |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Black |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included, Jam Nut Not Included |
| Number of Positions | 21 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shell Size - Insert [Max] | 21 |
| Shell Size - Insert [Min] | 18 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 10.69 | |
| 10 | $ 9.62 | |||
| 25 | $ 9.06 | |||
| 50 | $ 8.83 | |||
| 100 | $ 8.60 | |||
| 400 | $ 7.67 | |||
| 800 | $ 6.74 | |||
| 1200 | $ 6.37 | |||
Description
General part information
AHDP04 Series
21 Position Circular Connector Receptacle Housing Panel Mount
