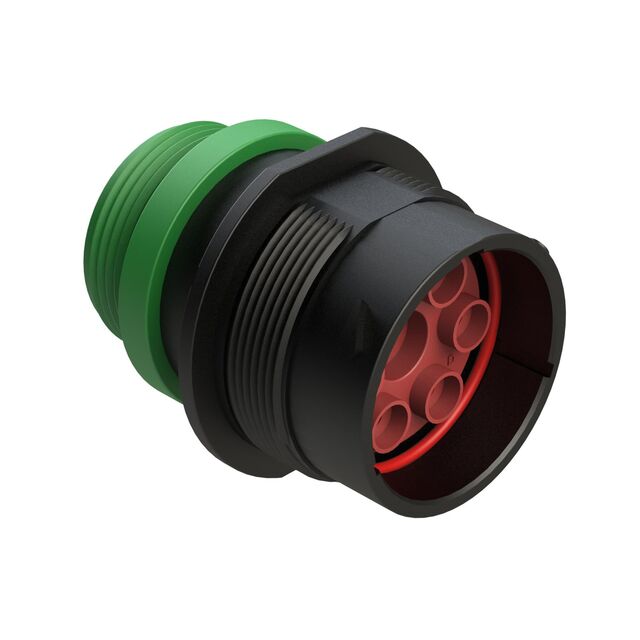

AHDP04-24-07PN-STA

Active

Amphenol Sine Systems Corp

7 POSITION RECEPTACLE, PIN, SHEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AHDP04-24-07PN-STA

Active

Amphenol Sine Systems Corp

7 POSITION RECEPTACLE, PIN, SHEL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AHDP04-24-07PN-STA

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	8, 12
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP68, IP69K
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	24-7
Shielding	Unshielded
Type	For Male Pins

AHDP04 Series

...

Part	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Contact Type	Primary Material	Contact Shape	Ingress Protection	Connector Type	Insert Material	Type	Mounting Feature	Note	Fastening Type	Shielding	Contact Size	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions	Shell Size - Insert	Number of Positions	Contact Size
Amphenol Sine Systems Corp AHDP04-24-16SN-STA	Keyed	-55 °C	125 °C	Black	Crimp	Plastic	Circular	IP68 IP69K	Receptacle Housing	Thermoplastic	For Female Sockets	Bulkhead - Front Side Nut	Contacts Not Included	Bayonet Lock	Unshielded	12	24	16	16
Amphenol Sine Systems Corp AHDP04-24-09PR-SRA	Keyed	-55 °C	125 °C	Black	Crimp		Circular	IP67 IP69K	Receptacle Housing	Thermoplastic	For Male Pins	Bulkhead - Front Side Nut	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Unshielded					24-9	9	12 (6) 4 (1) 8 (2)
Amphenol Sine Systems Corp AHDP04-24-14SR-SRA	Keyed	-55 °C	125 °C	Black	Crimp	Plastic	Circular	IP67 IP69K	Receptacle Housing		For Female Sockets	Bulkhead - Front Side Nut	Contacts Not Included	Bayonet Lock	Unshielded	4 12 16				24-14	14
Amphenol Sine Systems Corp AHDP04-24-07PN-STA	Keyed	-55 °C	125 °C	Black	Crimp	Plastic	Circular	IP68 IP69K	Receptacle Housing	Thermoplastic	For Male Pins	Bulkhead - Front Side Nut	Contacts Not Included	Bayonet Lock	Unshielded	8 12				24-7	7
Amphenol Sine Systems Corp AHDP04-24-91PR16-SRA	Keyed	-55 °C	125 °C	Black	Crimp	Plastic	Circular	IP67 IP69K	Receptacle Housing	Thermoplastic	For Male Pins	Bulkhead - Front Side Nut	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Unshielded		24	91			9	12 (2) 16 (5) 8 (2)
Amphenol Sine Systems Corp AHDP04-24-27SR-SRA	Keyed	-55 °C	125 °C	Black	Crimp		Circular	IP67 IP69K	Receptacle Housing	Thermoplastic	For Female Sockets	Bulkhead - Front Side Nut	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Unshielded		24	27			27
Amphenol Sine Systems Corp AHDP04-18-21SN-SRA	Keyed	-55 °C	125 °C	Black	Crimp		Circular	IP67 IP69K	Receptacle Housing	Thermoplastic	For Female Sockets	Bulkhead - Front Side Nut	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Unshielded	20	18	21			21
Amphenol Sine Systems Corp AHDP04-24-16SN-WTA	Keyed	-55 °C	125 °C	Black	Crimp		Circular	IP67 IP69K	Receptacle Housing	Thermoplastic	For Female Sockets	Bulkhead - Front Side Nut	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Unshielded	12	24	16	16
Amphenol Sine Systems Corp AHDP04-18-20PR-WTA	Keyed	-55 °C	125 °C	Black	Crimp		Circular	IP67 IP69K	Receptacle Housing	Thermoplastic	For Male Pins	Bulkhead - Front Side Nut	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Unshielded		18	20			20	16 (2) 20 (18)
Amphenol Sine Systems Corp AHDP04-18-06SN-SRAC030	Keyed	-55 °C	125 °C	Black	Crimp		Circular	IP67 IP69K	Receptacle Housing	Thermoplastic	For Female Sockets	Bulkhead - Front Side Nut	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Unshielded	4 4				18-6	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 13.10

Description

General part information

AHDP04 Series

7 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources
