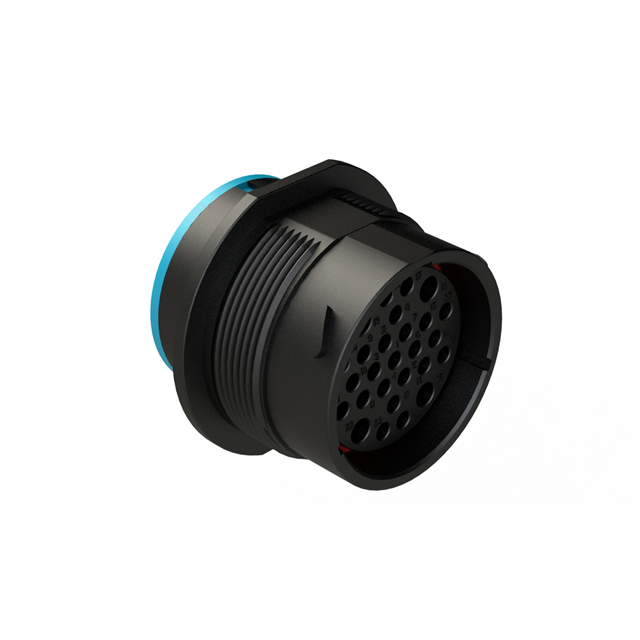

AHDP04-24-27SR-SRA

Active

Amphenol Sine Systems Corp

CONN RCPT HSG FMALE 27POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDura|Mate™ Family Brochure Datasheet

AHDP04-24-27SR-SRA

Active

Amphenol Sine Systems Corp

CONN RCPT HSG FMALE 27POS PNL MT

Deep-Dive with AI

DocumentsDura|Mate™ Family Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AHDP04-24-27SR-SRA

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included, Jam Nut Not Included
Number of Positions	27
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert [Max]	27
Shell Size - Insert [Min]	24
Shielding	Unshielded
Type	For Female Sockets

AHDP04 Series

...

Part	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Contact Type	Primary Material	Contact Shape	Ingress Protection	Connector Type	Insert Material	Type	Mounting Feature	Note	Fastening Type	Shielding	Contact Size	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions	Shell Size - Insert	Number of Positions	Contact Size
Amphenol Sine Systems Corp AHDP04-24-16SN-STA	Keyed	-55 °C	125 °C	Black	Crimp	Plastic	Circular	IP68 IP69K	Receptacle Housing	Thermoplastic	For Female Sockets	Bulkhead - Front Side Nut	Contacts Not Included	Bayonet Lock	Unshielded	12	24	16	16
Amphenol Sine Systems Corp AHDP04-24-09PR-SRA	Keyed	-55 °C	125 °C	Black	Crimp		Circular	IP67 IP69K	Receptacle Housing	Thermoplastic	For Male Pins	Bulkhead - Front Side Nut	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Unshielded					24-9	9	12 (6) 4 (1) 8 (2)
Amphenol Sine Systems Corp AHDP04-24-14SR-SRA	Keyed	-55 °C	125 °C	Black	Crimp	Plastic	Circular	IP67 IP69K	Receptacle Housing		For Female Sockets	Bulkhead - Front Side Nut	Contacts Not Included	Bayonet Lock	Unshielded	4 12 16				24-14	14
Amphenol Sine Systems Corp AHDP04-24-07PN-STA	Keyed	-55 °C	125 °C	Black	Crimp	Plastic	Circular	IP68 IP69K	Receptacle Housing	Thermoplastic	For Male Pins	Bulkhead - Front Side Nut	Contacts Not Included	Bayonet Lock	Unshielded	8 12				24-7	7
Amphenol Sine Systems Corp AHDP04-24-91PR16-SRA	Keyed	-55 °C	125 °C	Black	Crimp	Plastic	Circular	IP67 IP69K	Receptacle Housing	Thermoplastic	For Male Pins	Bulkhead - Front Side Nut	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Unshielded		24	91			9	12 (2) 16 (5) 8 (2)
Amphenol Sine Systems Corp AHDP04-24-27SR-SRA	Keyed	-55 °C	125 °C	Black	Crimp		Circular	IP67 IP69K	Receptacle Housing	Thermoplastic	For Female Sockets	Bulkhead - Front Side Nut	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Unshielded		24	27			27
Amphenol Sine Systems Corp AHDP04-18-21SN-SRA	Keyed	-55 °C	125 °C	Black	Crimp		Circular	IP67 IP69K	Receptacle Housing	Thermoplastic	For Female Sockets	Bulkhead - Front Side Nut	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Unshielded	20	18	21			21
Amphenol Sine Systems Corp AHDP04-24-16SN-WTA	Keyed	-55 °C	125 °C	Black	Crimp		Circular	IP67 IP69K	Receptacle Housing	Thermoplastic	For Female Sockets	Bulkhead - Front Side Nut	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Unshielded	12	24	16	16
Amphenol Sine Systems Corp AHDP04-18-20PR-WTA	Keyed	-55 °C	125 °C	Black	Crimp		Circular	IP67 IP69K	Receptacle Housing	Thermoplastic	For Male Pins	Bulkhead - Front Side Nut	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Unshielded		18	20			20	16 (2) 20 (18)
Amphenol Sine Systems Corp AHDP04-18-06SN-SRAC030	Keyed	-55 °C	125 °C	Black	Crimp		Circular	IP67 IP69K	Receptacle Housing	Thermoplastic	For Female Sockets	Bulkhead - Front Side Nut	Contacts Not Included Jam Nut Not Included	Bayonet Lock	Unshielded	4 4				18-6	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	400	$ 7.84

Description

General part information

AHDP04 Series

27 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

Dura|Mate™ Family Brochure

Datasheet
