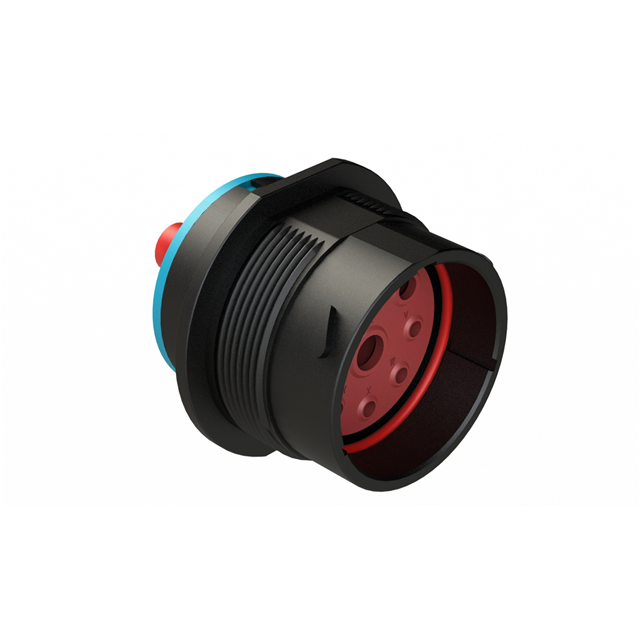

AHDP04-24-09PR-SRA
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG MALE 9POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
AHDP04-24-09PR-SRA
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG MALE 9POS PNL MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHDP04-24-09PR-SRA |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 8 (2), 4 (1), 12 (6) |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Black |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included, Jam Nut Not Included |
| Number of Positions | 9 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shell Size - Insert | 24-9 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.01 | |
| 10 | $ 9.99 | |||
| 25 | $ 9.03 | |||
| 50 | $ 8.38 | |||
| 100 | $ 7.79 | |||
| 250 | $ 7.09 | |||
| 500 | $ 6.62 | |||
| 1000 | $ 6.20 | |||
Description
General part information
AHDP04 Series
9 Position Circular Connector Receptacle Housing Panel Mount
