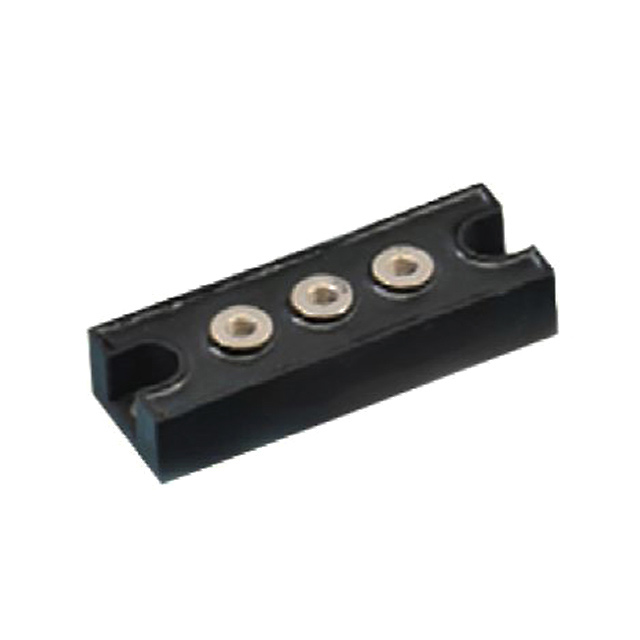

MURTA200120R

Active

GeneSiC Semiconductor

DIODE MODULE GP 1.2KV 3TOWER

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE MODULE GP 1.2KV 3TOWER

Technical Specifications

Parameters and characteristics for this part

Specification	MURTA200120R

Current - Average Rectified (Io) (per Diode)	100 A
Diode Configuration	1 Pair Common Anode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	Three Tower
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Three Tower
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	2.6 V

Part	Technology	Speed	Speed	Current - Average Rectified (Io) (per Diode)	Diode Configuration	Mounting Type	Supplier Device Package	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If
GeneSiC Semiconductor MURTA20020	Standard	Standard Recovery >500ns	200 mA	100 A	1 Pair Common Cathode	Chassis Mount	Three Tower	Three Tower	150 °C	-55 °C	200 V	25 µA	1.3 V
GeneSiC Semiconductor MURTA20060R	Standard	Standard Recovery >500ns	200 mA	100 A	1 Pair Common Anode	Chassis Mount	Three Tower	Three Tower	150 °C	-55 °C	600 V	25 µA	1.7 V
GeneSiC Semiconductor MURTA20040R	Standard	Standard Recovery >500ns	200 mA	100 A	1 Pair Common Anode	Chassis Mount	Three Tower	Three Tower	150 °C	-55 °C	400 V	25 µA	1.3 V
GeneSiC Semiconductor MURTA200120	Standard	Standard Recovery >500ns	200 mA	100 A	1 Pair Common Cathode	Chassis Mount	Three Tower	Three Tower	150 °C	-55 °C	1.2 kV		2.6 V
GeneSiC Semiconductor MURTA200120R	Standard	Standard Recovery >500ns	200 mA	100 A	1 Pair Common Anode	Chassis Mount	Three Tower	Three Tower	150 °C	-55 °C	1.2 kV		2.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	48	$ 121.18

General part information

Diode Array 1 Pair Common Anode 1200 V 100A Chassis Mount Three Tower
