712AH

Active

Switchcraft Inc.

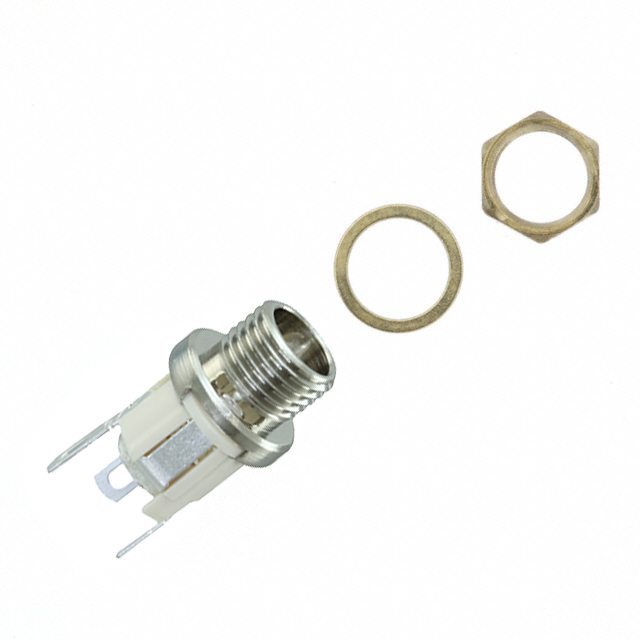

CONN DC POWER F 2 POS SOLDER LUG ST PANEL MOUNT 3 TERMINAL 1 PORT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

712AH

Active

Switchcraft Inc.

CONN DC POWER F 2 POS SOLDER LUG ST PANEL MOUNT 3 TERMINAL 1 PORT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	712AH

Body Color	Silver, Black
Body Material	Copper Alloy
Connector Type	Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Nickel
Gender	Male
Housing Material	Thermoplastic
Includes	Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	2.5 mm ID
Industry Recognized Mating Diameter [diameter]	0.098 "
Internal Switch(s)	Single Switch
Mounting Type	Through Hole
Number of Positions/Contacts	3 Conductors, 2 Conductors
Shielding	Unshielded
Termination	Through Hole
Thread Size	5/16"-32
Voltage - Rated	48 V

712A Series

Part	Body Color	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Mounting Type	Gender	Connector Type	Termination	Contact Material - Plating	Insulation Color	Body Material	Shielding	Contact Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Actual Diameter [diameter]	Actual Diameter [diameter]	Voltage - Rated	Features	Number of Positions/Contacts	Housing Material	Mounting Feature	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Mating Length/Depth	Mating Length/Depth	Thread Size	Contact Material - Plating [custom]	Includes	Internal Switch(s)
Switchcraft Inc. 712ACF	Black Silver	2.5 mm ID	0.098 "	Free Hanging (In-Line)	Male	Jack	Solder Eyelet(s)	Tin	Black	Copper Alloy	Unshielded	Copper Alloy	5 A	-40 °C	105 ░C	2.5 mm	0.098 in	24 VDC	Strain Relief	2 Conductors 3 Conductors	Thermoplastic
Switchcraft Inc. 712AC	Black Silver	2.5 mm ID	0.098 "	Free Hanging (In-Line)	Male	Jack	Solder Eyelet(s)	Tin	Black	Copper Alloy	Unshielded	Copper Alloy	5 A	-40 °C	105 ░C	2.5 mm	0.098 in	24 VDC		2 Conductors 3 Conductors	Thermoplastic
Switchcraft Inc. 712AFMS	Silver	2.5 mm 5.5 mm	0.098 " 0.217 "		Male	Jack	Solder Cup Solder Eyelet		Silver	Brass	Shielded	Brass	5 A	-40 °C	65 °C			48 V			Acrylonitrile Butadiene Styrene (ABS)	Bulkhead - Rear Side Nut	2	2	2.5 mm	0.098 "	0.217 "	5.5 mm	0.374 in	9.5 mm	M11x1	Nickel	Mounting Hardware
Switchcraft Inc. 712AH	Black Silver	2.5 mm ID	0.098 "	Through Hole	Male	Jack	Through Hole			Copper Alloy	Unshielded	Copper Alloy						48 V		2 Conductors 3 Conductors	Thermoplastic										5/16"-32	Nickel	Connector Nut Washer	Single Switch

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.09
		10	$ 5.43
		25	$ 4.90
		50	$ 4.54
		100	$ 4.21
		300	$ 3.76
		500	$ 3.57
		1000	$ 3.33
		2500	$ 3.08

Description

General part information

712A Series

Power Barrel Connector Jack 2.50mm ID (0.098") Through Hole

Documents

Technical documentation and resources
